Please send RFQ , we will respond immediately.

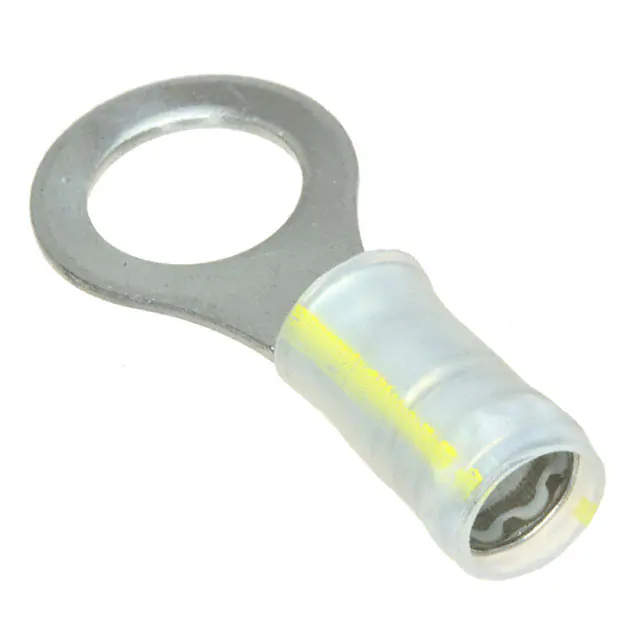

| Part Number | 53427-1 | 53428-1 | 53429-1 | 53407-1 | 53417-1 | 53420-1 | 53421-1 | 53422-1 | 53423-1 | 53424-1 | 53425-1 | 53426-1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Oval | Circular | Circular | Circular | Circular | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | M8 Stud | 3/8 Stud | 1/2 Stud | 6 Stud | 8 Stud | 5/16 Stud | 3/8 Stud | M12 Stud | M3.5 Stud | 8 Stud | 10 Stud | 1/4 Stud |
| Thickness | 0.039" (0.99mm) | 0.039" (0.99mm) | 0.039" (0.99mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.039" (0.99mm) | 0.039" (0.99mm) | 0.039" (0.99mm) | 0.039" (0.99mm) |
| Width - Outer Edges | 0.531" (13.49mm) | 0.593" (15.06mm) | 0.715" (18.16mm) | 0.250" (6.35mm) | 0.312" (7.92mm) | 0.469" (11.91mm) | 0.531" (13.49mm) | 0.713" (18.11mm) | 0.375" (9.53mm) | 0.375" (9.53mm) | 0.375" (9.53mm) | 0.531" (13.49mm) |
| Length - Overall | 1.322" (33.58mm) | 1.419" (36.04mm) | 1.414" (35.92mm) | 0.782" (19.86mm) | 0.844" (21.44mm) | 1.078" (27.38mm) | 1.218" (30.94mm) | 1.293" (32.84mm) | 1.083" (27.50mm) | 1.083" (27.51mm) | 1.083" (27.51mm) | 1.322" (33.58mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 10-12 AWG | 10-12 AWG | 10-12 AWG | 16-22 AWG | 14-16 AWG | 14-16 AWG | 14-16 AWG | 14-16 AWG | 10-12 AWG | 10-12 AWG | 10-12 AWG | 10-12 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | - | - | Radiation Resistant | Radiation Resistant, Serrated Termination | Radiation Resistant, Serrated Termination | Radiation Resistant, Serrated Termination | Radiation Resistant, Serrated Termination | Serrated Termination | - | Radiation Resistant, Serrated Termination | Radiation Resistant, Serrated Termination | Radiation Resistant |
| Color | Natural, Yellow Stripe | Natural, Yellow Stripe | Natural, Yellow Stripe | Natural, Red Stripe | Natural, Blue Stripe | Natural, Blue Stripe | Natural, Blue Stripe | Natural | Natural, Yellow Stripe | Natural, Yellow Stripe | Natural, Yellow Stripe | Natural, Yellow Stripe |
| Contact Material | Copper | Copper | Copper | Copper | Copper | Copper | Copper | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead |
