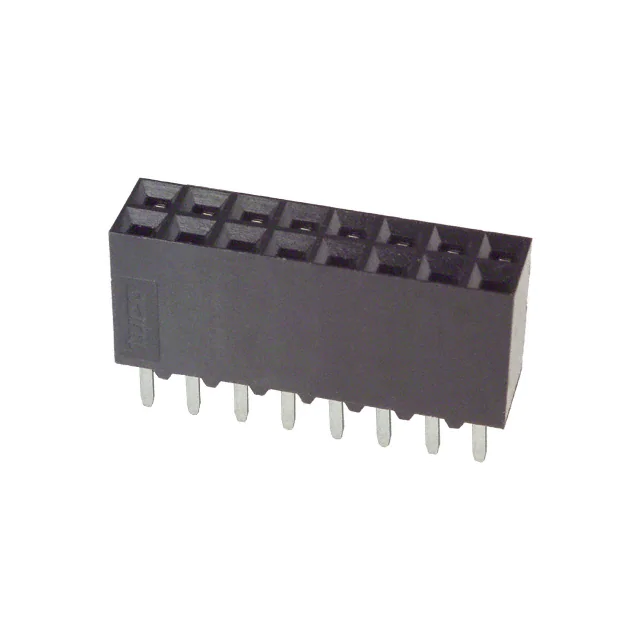

| Part Number | 534236-8 | 534237-8 | 534236-9 | 534206-8 | 534236-3 | 534236-4 | 534236-5 | 534236-6 | 534236-7 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Obsolete | Active | Active | Active | Active |
| Connector Type | Receptacle, Bottom or Top Entry | Receptacle | Receptacle, Bottom or Top Entry | Receptacle | Receptacle, Bottom or Top Entry | Receptacle, Bottom or Top Entry | Receptacle, Bottom or Top Entry | Receptacle, Bottom or Top Entry | Receptacle, Bottom or Top Entry |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket |
| Style | Board to Board | Board to Board or Cable | Board to Board | Board to Board or Cable | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board |
| Number of Positions | 16 | 10 | 18 | 16 | 6 | 8 | 10 | 12 | 14 |
| Number of Positions Loaded | All | All | All | All | All | All | All | All | All |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 2 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) | - | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Fastening Type | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull |
| Contact Finish - Mating | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Insulation Color | Black | Black | Black | Black | Black | Black | Black | Black | Black |
| Insulation Height | 0.340" (8.64mm) | 0.340" (8.64mm) | 0.340" (8.64mm) | 0.320" (8.13mm) | 0.340" (8.64mm) | 0.340" (8.64mm) | 0.340" (8.64mm) | 0.340" (8.64mm) | 0.340" (8.64mm) |
| Contact Length - Post | - | 0.115" (2.92mm) | - | 0.115" (2.92mm) | - | - | - | - | - |
| Operating Temperature | -65°C ~ 105°C | -65°C ~ 125°C | -65°C ~ 105°C | -65°C ~ 125°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C |
| Material Flammability Rating | - | - | - | - | - | - | - | - | - |
| Contact Finish - Post | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead |
| Mated Stacking Heights | - | - | - | - | - | - | - | - | - |
| Ingress Protection | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - |
| Current Rating (Amps) | - | 2A | - | 2A | - | - | - | - | - |
| Voltage Rating | - | - | - | - | - | - | - | - | - |
