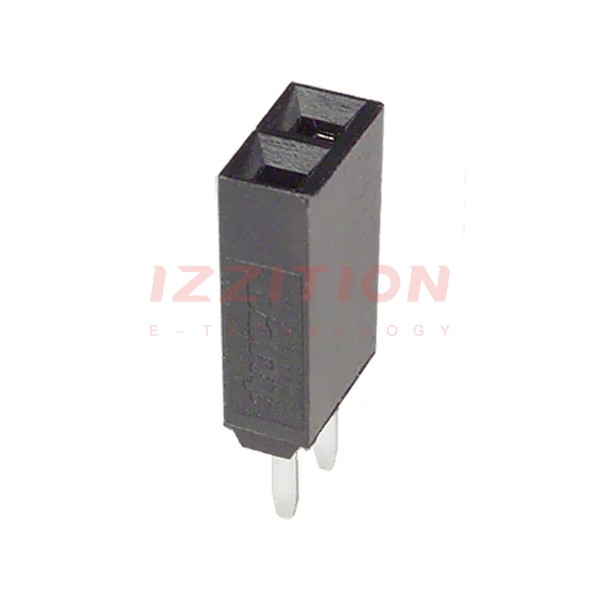

| Part Number | 534206-1 | 534206-3 | 534206-6 | 534206-4 | 534206-7 | 534206-5 | 534206-2 | 534206-8 | 534206-9 | 534204-1 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Discontinued at Digi-Key | Active |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket |
| Style | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board |
| Number of Positions | 2 | 6 | 12 | 8 | 14 | 10 | 4 | 16 | 18 | 50 |
| Number of Positions Loaded | All | All | All | All | All | All | All | All | All | All |
| Pitch - Mating | - | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole, Right Angle |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Kinked Pin, Solder |
| Fastening Type | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull |
| Contact Finish - Mating | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Insulation Color | Black | Black | Black | Black | Black | Black | Black | Black | Black | Black |
| Insulation Height | 0.320" (8.13mm) | 0.320" (8.13mm) | 0.320" (8.13mm) | 0.320" (8.13mm) | 0.320" (8.13mm) | 0.320" (8.13mm) | 0.320" (8.13mm) | 0.320" (8.13mm) | 0.320" (8.13mm) | 0.238" (6.05mm) |
| Contact Length - Post | 0.115" (2.92mm) | 0.115" (2.92mm) | 0.115" (2.92mm) | 0.115" (2.92mm) | 0.115" (2.92mm) | 0.115" (2.92mm) | 0.115" (2.92mm) | 0.115" (2.92mm) | 0.115" (2.92mm) | 0.115" (2.92mm) |
| Operating Temperature | -65°C ~ 125°C | -65°C ~ 125°C | -65°C ~ 125°C | -65°C ~ 125°C | -65°C ~ 125°C | -65°C ~ 125°C | -65°C ~ 125°C | -65°C ~ 125°C | -65°C ~ 125°C | - |
| Material Flammability Rating | - | - | - | - | - | - | - | - | - | - |
| Contact Finish - Post | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead |
| Mated Stacking Heights | - | - | - | - | - | - | - | - | - | - |
| Ingress Protection | - | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - | Guide Pin Ears |
| Current Rating (Amps) | 2A | 2A | 2A | 2A | 2A | 2A | 2A | 2A | 2A | - |
| Voltage Rating | - | - | - | - | - | - | - | - | - | - |
