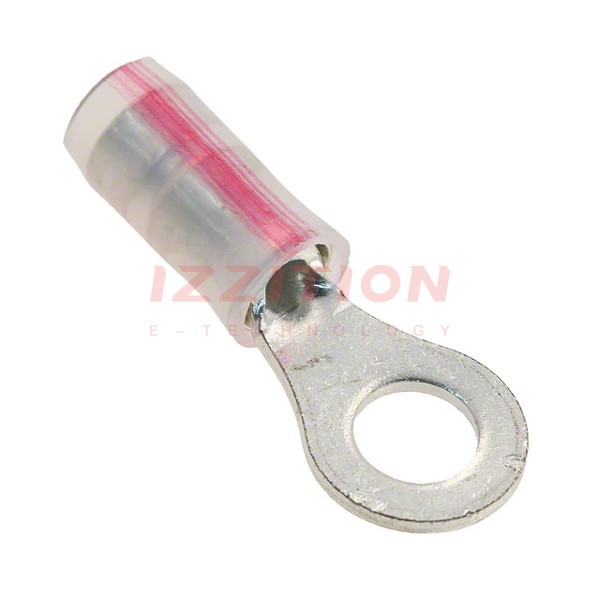

| Part Number | 53408-2 | 53407-2 | 53408-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular |
| Stud/Tab Size | 8 Stud | 6 Stud | 8 Stud |
| Thickness | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) |
| Width - Outer Edges | 0.312" (7.92mm) | 0.250" (6.35mm) | 0.312" (7.92mm) |
| Length - Overall | 0.844" (21.44mm) | 0.782" (19.86mm) | 0.844" (21.44mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 16-22 AWG | 16-22 AWG |
| Insulation | Insulated | Insulated | Insulated |
| Features | Radiation Resistant, Serrated Termination | Radiation Resistant, Serrated Termination | Radiation Resistant, Serrated Termination |
| Color | Natural, Red Stripe | Natural, Red Stripe | Natural, Red Stripe |
| Contact Material | Copper | Copper | Copper |
| Contact Finish | Tin-Lead | Tin-Lead | Tin-Lead |
