Please send RFQ , we will respond immediately.

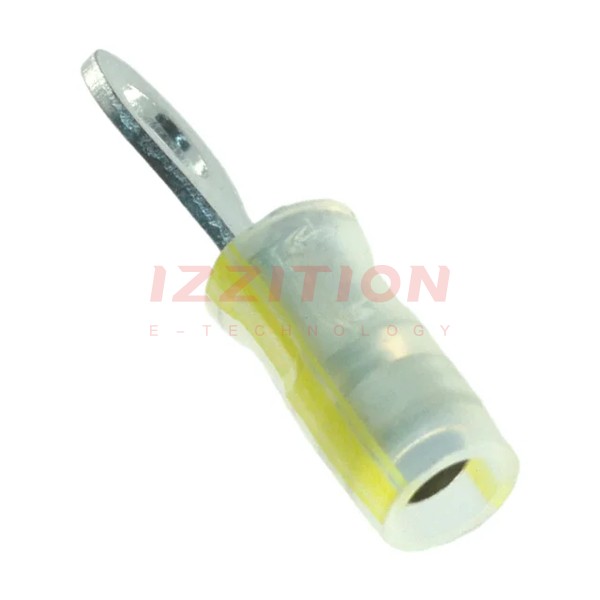

| Part Number | 53402-1 | 53407-1 | 53408-1 | 53406-1 | 53404-1 | 53403-1 | 53412-1 | 53409-1 | 53422-1 | 53405-1 | 53400-1 | 53401-1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular | Circular | Circular | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 6 Stud | 6 Stud | 8 Stud | 6 Stud | 10 Stud | 8 Stud | 3/8 Stud | 10 Stud | M12 Stud | 4 Stud | 2 Stud | 4 Stud |
| Thickness | 0.027" (0.69mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.027" (0.69mm) | 0.027" (0.69mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.027" (0.69mm) | 0.027" (0.69mm) |
| Width - Outer Edges | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.312" (7.92mm) | 0.218" (5.54mm) | 0.312" (7.92mm) | 0.281" (7.14mm) | 0.531" (13.49mm) | 0.312" (7.92mm) | 0.713" (18.11mm) | 0.218" (5.54mm) | 0.203" (5.16mm) | 0.203" (5.16mm) |
| Length - Overall | 0.792" (20.12mm) | 0.782" (19.86mm) | 0.844" (21.44mm) | 0.672" (17.07mm) | 0.861" (21.87mm) | 0.814" (20.68mm) | 1.218" (30.94mm) | 0.844" (21.44mm) | 1.293" (32.84mm) | 0.672" (17.07mm) | 0.736" (18.69mm) | 0.736" (18.69mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 24-26 AWG | 16-22 AWG | 16-22 AWG | 16-22 AWG | 24-26 AWG | 24-26 AWG | 16-22 AWG | 16-22 AWG | 14-16 AWG | 16-22 AWG | 24-26 AWG | 24-26 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Radiation Resistant, Serrated Termination | Radiation Resistant, Serrated Termination | Radiation Resistant, Serrated Termination | Radiation Resistant, Serrated Termination | Radiation Resistant, Serrated Termination | Radiation Resistant, Serrated Termination | Radiation Resistant, Serrated Termination | Radiation Resistant, Serrated Termination | Serrated Termination | Radiation Resistant | Serrated Termination | Radiation Resistant, Serrated Termination |
| Color | Yellow | Natural, Red Stripe | Natural, Red Stripe | Natural, Red Stripe | Natural, Yellow Stripe | Natural, Yellow Stripe | Natural, Red Stripe | Natural, Red Stripe | Natural | Natural, Red Stripe | Natural | Natural, Yellow Stripe |
| Contact Material | Copper | Copper | Copper | Copper | Copper | Copper | Copper | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead |
