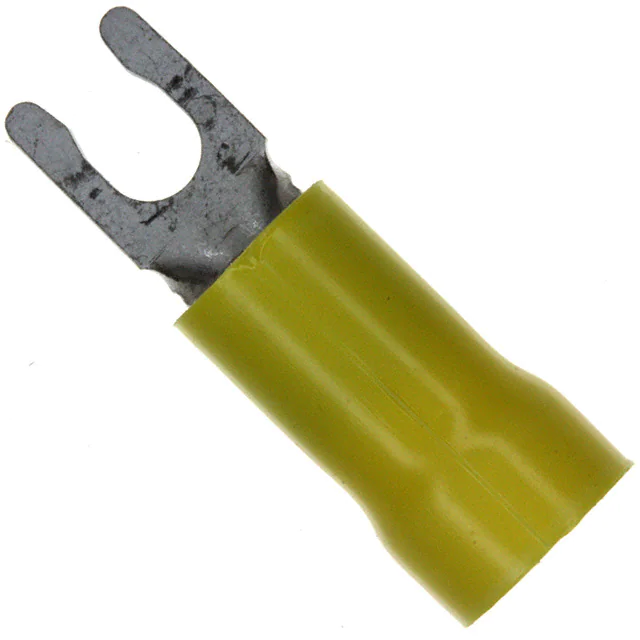

| Part Number | 53246-1 | 53246-2 | 53247-1 | 53248-1 | 53240-1 | 53241-1 | 53242-1 | 53244-1 | 53245-1 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap |
| Stud/Tab Size | 6 Stud | 6 Stud | 8 Stud | 10 Stud | 6 Stud | 8 Stud | 10 Stud | 8 Stud | 10 Stud |
| Width - Outer Edges | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.234" (5.94mm) | 0.244" (6.20mm) | 0.294" (7.47mm) | 0.244" (6.20mm) | 0.294" (7.47mm) |
| Length - Overall | 0.959" (24.36mm) | 0.959" (24.36mm) | 1.052" (26.72mm) | 1.100" (27.94mm) | 0.811" (20.60mm) | 0.872" (22.15mm) | 0.920" (23.37mm) | 0.872" (22.15mm) | 0.920" (23.37mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 10-12 AWG | 10-12 AWG | 10-12 AWG | 10-12 AWG | 16-22 AWG | 16-22 AWG | 16-22 AWG | 14-16 AWG | 14-16 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Yellow | Yellow | Yellow | Yellow | Red | Red | Red | Blue | Blue |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Material | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass |
