Please send RFQ , we will respond immediately.

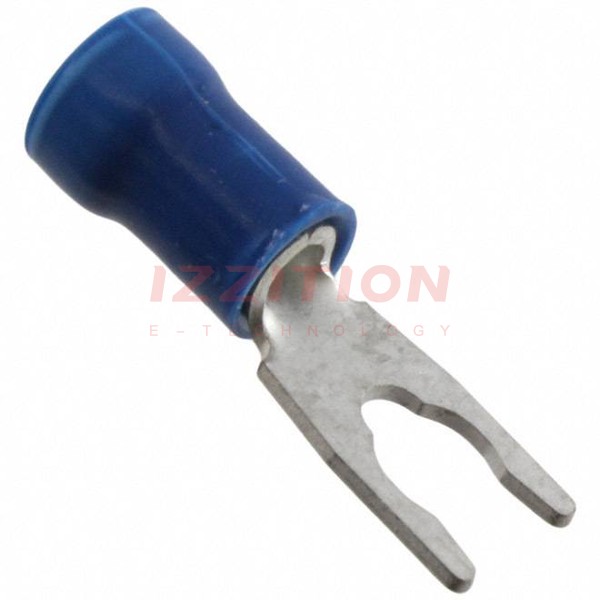

| Part Number | 53244-2 | 53246-2 | 53245-2 | 53247-2 | 53274-2 | 53244-4 | 53240-2 | 53241-2 | 53242-2 | 53244-1 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap |
| Stud/Tab Size | 8 Stud | 6 Stud | 10 Stud | 8 Stud | 10 Stud | 8 Stud | 6 Stud | 8 Stud | 10 Stud | 8 Stud |
| Width - Outer Edges | 0.244" (6.20mm) | 0.250" (6.35mm) | 0.294" (7.47mm) | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.244" (6.20mm) | 0.234" (5.94mm) | 0.244" (6.20mm) | 0.294" (7.47mm) | 0.244" (6.20mm) |
| Length - Overall | 0.872" (22.15mm) | 0.959" (24.36mm) | 0.920" (23.37mm) | 1.052" (26.72mm) | 0.777" (19.74mm) | 0.921" (23.39mm) | 0.811" (20.60mm) | 0.872" (22.15mm) | 0.920" (23.37mm) | 0.872" (22.15mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 14-16 AWG | 10-12 AWG | 14-16 AWG | 10-12 AWG | 10-12 AWG | 14-16 AWG | 16-22 AWG | 16-22 AWG | 16-22 AWG | 14-16 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Non-Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Blue | Yellow | Blue | Yellow | - | Blue | Red | Red | Red | Blue |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Material | Brass | Brass | Brass | Brass | Phosphor Bronze | Brass | Brass | Brass | Brass | Brass |
