Please send RFQ , we will respond immediately.

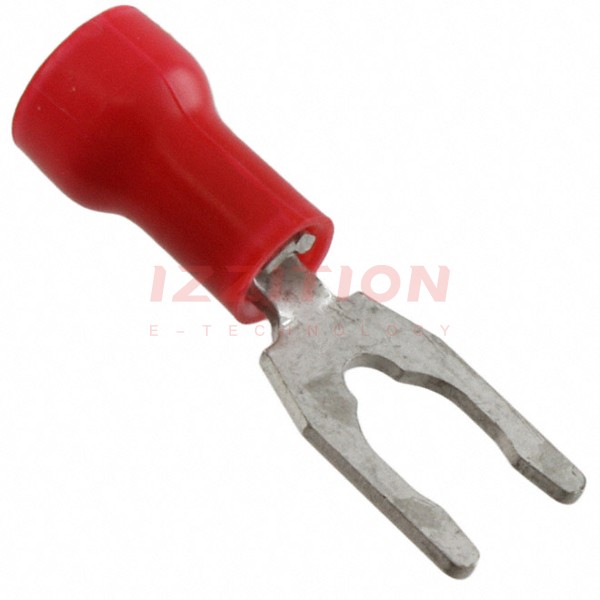

| Part Number | 53242-6 | 53245-6 | 53242-1 | 53242-2 | 53242-5 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Terminal Type | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap |
| Stud/Tab Size | 10 Stud | 10 Stud | 10 Stud | 10 Stud | 10 Stud |
| Width - Outer Edges | 0.294" (7.47mm) | 0.294" (7.47mm) | 0.294" (7.47mm) | 0.294" (7.47mm) | 0.294" (7.47mm) |
| Length - Overall | 0.969" (24.61mm) | 0.969" (24.61mm) | 0.920" (23.37mm) | 0.920" (23.37mm) | 0.969" (24.60mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 14-16 AWG | 16-22 AWG | 16-22 AWG | 16-22 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Red | Blue | Red | Red | Red |
| Contact Finish | Tin | Tin | Tin | Tin | Tin |
| Contact Material | Brass | Brass | Brass | Brass | Brass |
