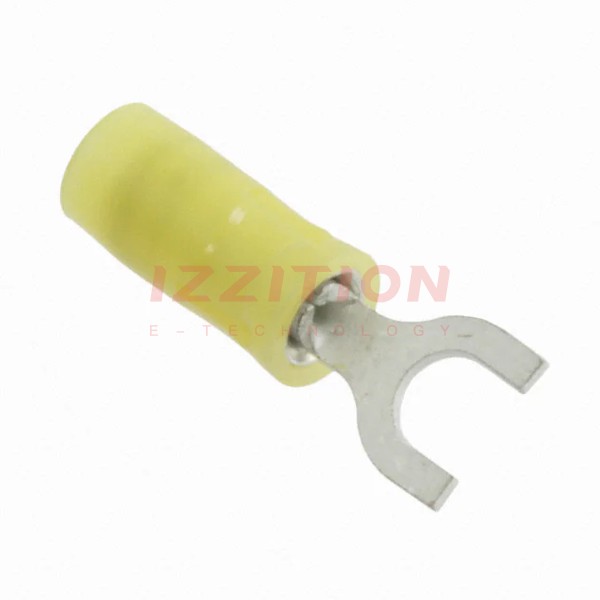

| Part Number | 53115-2 | 53125-2 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Standard | Spring, Snap |
| Stud/Tab Size | 6 Stud | 10 Stud |
| Width - Outer Edges | 0.250" (6.35mm) | 0.406" (10.31mm) |
| Length - Overall | 0.709" (18.01mm) | 0.685" (17.40mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp |
| Wire Gauge | 24-26 AWG | 14-16 AWG |
| Insulation | Insulated | Non-Insulated |
| Features | Serrated Termination | Brazed Seam, Serrated Termination |
| Color | Yellow | - |
| Contact Finish | Tin | Tin |
| Contact Material | Copper | Phosphor Bronze |
