Please send RFQ , we will respond immediately.

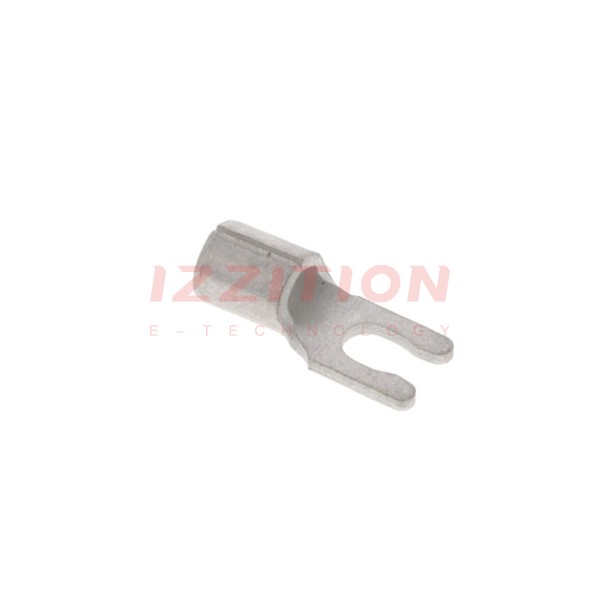

| Part Number | 53013-1 | 53003-1 | 53010-1 | 53011-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap |
| Stud/Tab Size | 5 Stud | 6 Stud | 6 Stud | 8 Stud |
| Width - Outer Edges | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.375" (9.53mm) |
| Length - Overall | 0.636" (16.15mm) | 0.483" (12.27mm) | 0.576" (14.63mm) | 0.637" (16.18mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 10-12 AWG | 22-26 AWG | 14-16 AWG | 14-16 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | - | - | - | - |
| Contact Finish | Tin | Tin | Tin | Tin |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
