Please send RFQ , we will respond immediately.

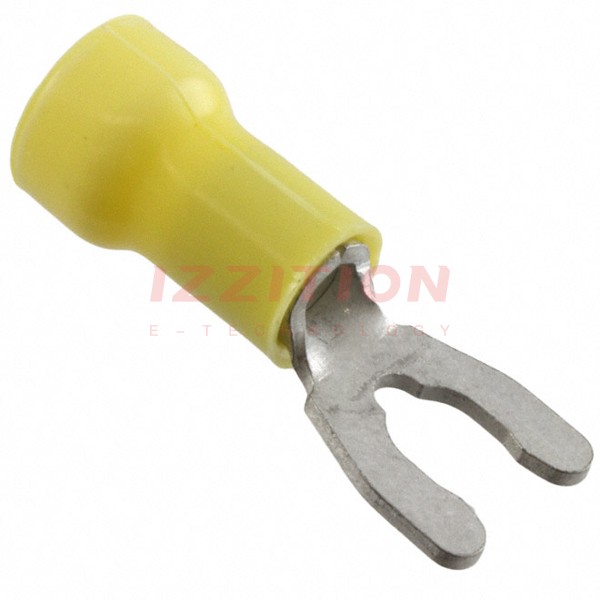

| Part Number | 52963-4 | 52963-5 | 52963-1 | 52963-2 | 52963-3 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Terminal Type | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap |
| Stud/Tab Size | 10 Stud | 10 Stud | 10 Stud | 10 Stud | 10 Stud |
| Width - Outer Edges | 0.406" (10.31mm) | 0.406" (10.31mm) | 0.406" (10.31mm) | 0.406" (10.31mm) | 0.406" (10.31mm) |
| Length - Overall | 1.159" (29.44mm) | 1.159" (29.44mm) | 1.100" (27.94mm) | 1.100" (27.94mm) | 1.100" (27.94mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 10-12 AWG | 10-12 AWG | 10-12 AWG | 10-12 AWG | 10-12 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Yellow | Yellow | Yellow | Yellow | Yellow |
| Contact Finish | Tin | Tin | Tin | Tin | Tin |
| Contact Material | Brass | Brass | Brass | Brass | Brass |
