Please send RFQ , we will respond immediately.

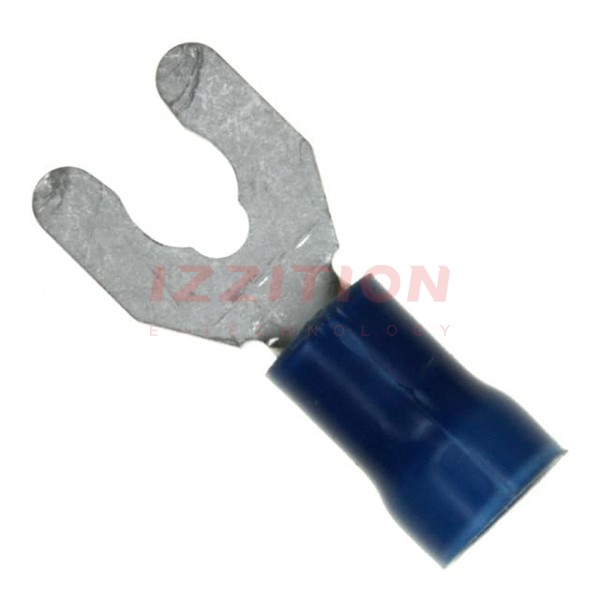

| Part Number | 52956-1 | 52957-1 | 52956-3 | 52956-2 | 52856-1 | 52936-1 | 52950-1 | 52951-1 | 52955-1 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Flanged | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap |
| Stud/Tab Size | 8 Stud | 10 Stud | 8 Stud | 8 Stud | 10 Stud | 8 Stud | 8 Stud | 10 Stud | 6 Stud |
| Width - Outer Edges | 0.375" (9.53mm) | 0.406" (10.31mm) | 0.375" (9.53mm) | 0.375" (9.53mm) | 0.416" (10.57mm) | 0.375" (9.53mm) | 0.375" (9.53mm) | 0.406" (10.31mm) | 0.250" (6.35mm) |
| Length - Overall | 0.872" (22.15mm) | 0.920" (23.37mm) | 0.921" (23.39mm) | 0.921" (23.39mm) | 1.017" (25.83mm) | 0.860" (21.84mm) | 0.872" (22.15mm) | 0.920" (23.37mm) | 0.811" (20.60mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 14-16 AWG | 14-16 AWG | 14-16 AWG | 14-16 AWG | 10-12 AWG | 14-16 AWG | 16-22 AWG | 16-22 AWG | 14-16 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | - |
| Color | Blue | Blue | Blue | Blue | Yellow | Blue | Red | Red | Blue |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Material | Brass | Brass | Brass | Brass | Copper | Phosphor Bronze | Brass | Brass | Brass |
