Please send RFQ , we will respond immediately.

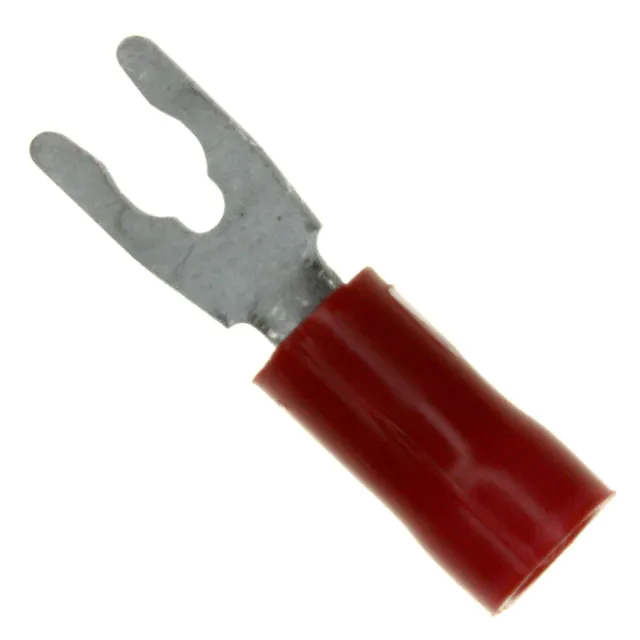

| Part Number | 52947-1 | 52957-1 | 52949-1 | 52948-1 | 52927-1 | 52937-1 | 52941-1 | 52942-1 | 52943-1 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap |
| Stud/Tab Size | 4 Stud | 10 Stud | 6 Stud | 5 Stud | 4 Stud | 10 Stud | 6 Stud | 8 Stud | 10 Stud |
| Width - Outer Edges | 0.203" (5.16mm) | 0.406" (10.31mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.203" (5.16mm) | 0.406" (10.31mm) | 0.250" (6.35mm) | 0.375" (9.53mm) | 0.406" (10.31mm) |
| Length - Overall | 0.811" (20.60mm) | 0.920" (23.37mm) | 0.811" (20.60mm) | 0.811" (20.60mm) | 0.799" (20.29mm) | 0.908" (23.06mm) | 0.959" (24.36mm) | 1.052" (26.72mm) | 1.100" (27.94mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 14-16 AWG | 16-22 AWG | 16-22 AWG | 16-22 AWG | 14-16 AWG | 10-12 AWG | 10-12 AWG | 10-12 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Red | Blue | Red | Red | Red | Blue | Yellow | Yellow | Yellow |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Material | Copper | Brass | Brass | Brass | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
