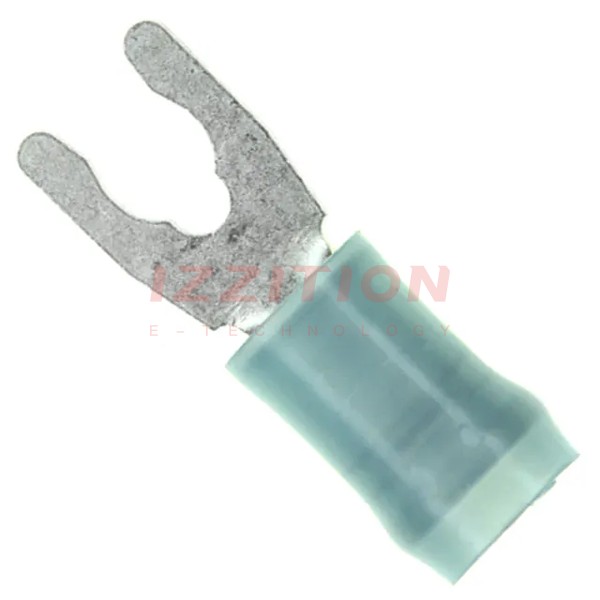

| Part Number | 52935-3 | 52937-3 | 52955-3 | 52936-3 | 52930-3 | 52931-3 | 52935-1 | 52935-2 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap |
| Stud/Tab Size | 6 Stud | 10 Stud | 6 Stud | 8 Stud | 8 Stud | 10 Stud | 6 Stud | 6 Stud |
| Width - Outer Edges | 0.250" (6.35mm) | 0.406" (10.31mm) | 0.250" (6.35mm) | 0.375" (9.53mm) | 0.375" (9.53mm) | 0.406" (10.31mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Length - Overall | 0.799" (20.29mm) | 0.908" (23.06mm) | 0.860" (21.84mm) | 0.860" (21.84mm) | 0.860" (21.84mm) | 0.908" (23.06mm) | 0.799" (20.29mm) | 0.799" (20.29mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 14-16 AWG | 14-16 AWG | 14-16 AWG | 14-16 AWG | 16-22 AWG | 16-22 AWG | 14-16 AWG | 14-16 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | - | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Blue | Blue | Blue | Blue | Red | Red | Blue | Blue |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Brass | Phosphor Bronze | Copper | Copper | Phosphor Bronze | Phosphor Bronze |
