Please send RFQ , we will respond immediately.

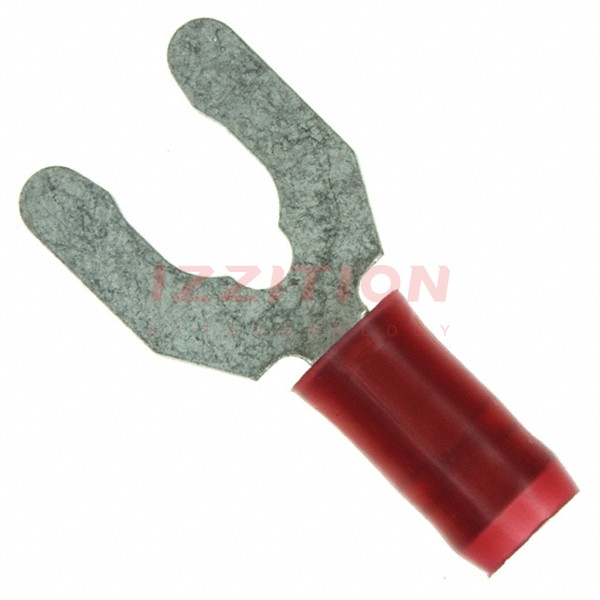

| Part Number | 52931-1 | 52937-1 | 52951-1 | 52961-1 | 52935-1 | 52936-1 | 52934-1 | 52941-1 | 52931-3 | 52939-1 | 52431-1 | 52921-1 | 52930-1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Obsolete | Active | Active | Active |
| Terminal Type | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap |
| Stud/Tab Size | 10 Stud | 10 Stud | 10 Stud | 6 Stud | 6 Stud | 8 Stud | 5 Stud | 6 Stud | 10 Stud | 1/4 Stud | 8 Stud | 2 Stud | 8 Stud |
| Width - Outer Edges | 0.406" (10.31mm) | 0.406" (10.31mm) | 0.406" (10.31mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.375" (9.53mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.406" (10.31mm) | 0.625" (15.88mm) | 0.375" (9.53mm) | 0.171" (4.34mm) | 0.375" (9.53mm) |
| Length - Overall | 0.908" (23.06mm) | 0.908" (23.06mm) | 0.920" (23.37mm) | 0.959" (24.36mm) | 0.799" (20.29mm) | 0.860" (21.84mm) | 0.799" (20.29mm) | 0.959" (24.36mm) | 0.908" (23.06mm) | 1.033" (26.24mm) | 1.174" (29.82mm) | 0.651" (16.54mm) | 0.860" (21.84mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 14-16 AWG | 16-22 AWG | 10-12 AWG | 14-16 AWG | 14-16 AWG | 14-16 AWG | 10-12 AWG | 16-22 AWG | 14-16 AWG | 10-12 AWG | 22-26 AWG | 16-22 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Red | Blue | Red | Yellow | Blue | Blue | Blue | Yellow | Red | Blue | Yellow | Yellow | Red |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Material | Copper | Phosphor Bronze | Brass | Brass | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Copper | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Copper |
