Please send RFQ , we will respond immediately.

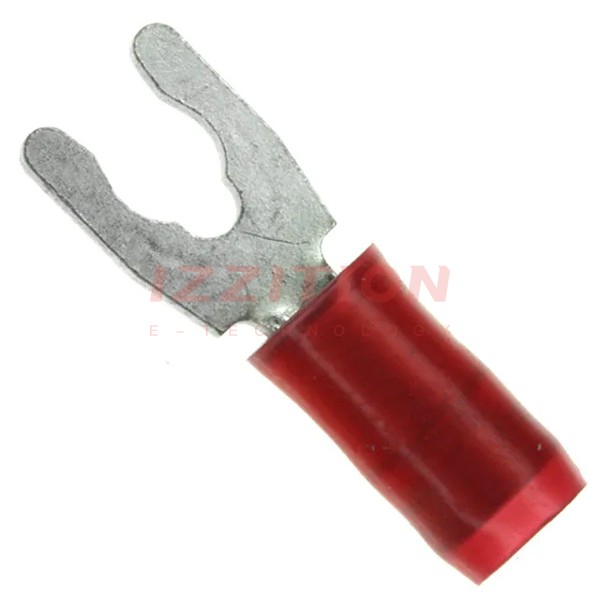

| Part Number | 52929-1 | 52949-1 | 52929-3 | 52939-1 | 52921-1 | 52922-1 | 52924-1 | 52925-1 | 52927-1 | 52928-1 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Obsolete | Active | Active | Active | Active | Active | Active |
| Terminal Type | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap |
| Stud/Tab Size | 6 Stud | 6 Stud | 6 Stud | 1/4 Stud | 2 Stud | 4 Stud | 6 Stud | 8 Stud | 4 Stud | 5 Stud |
| Width - Outer Edges | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.625" (15.88mm) | 0.171" (4.34mm) | 0.203" (5.16mm) | 0.250" (6.35mm) | 0.375" (9.53mm) | 0.203" (5.16mm) | 0.250" (6.35mm) |
| Length - Overall | 0.799" (20.29mm) | 0.811" (20.60mm) | 0.799" (20.29mm) | 1.033" (26.24mm) | 0.651" (16.54mm) | 0.695" (17.65mm) | 0.679" (17.25mm) | 0.787" (20.00mm) | 0.799" (20.29mm) | 0.799" (20.29mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 16-22 AWG | 16-22 AWG | 14-16 AWG | 22-26 AWG | 22-26 AWG | 22-26 AWG | 22-26 AWG | 16-22 AWG | 16-22 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | - | Serrated Termination | - | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Red | Red | Red | Blue | Yellow | Yellow | Yellow | Yellow | Red | Red |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Material | Copper | Brass | Copper | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
