Please send RFQ , we will respond immediately.

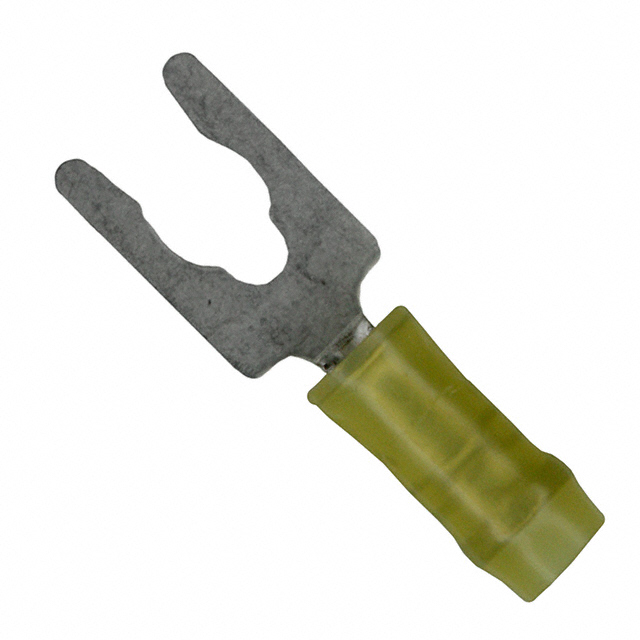

| Part Number | 52922-1 | 52962-1 | 52925-1 | 52927-1 | 52929-1 | 52924-1 | 52942-1 | 52928-1 | 52422-1 | 52921-1 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap |
| Stud/Tab Size | 4 Stud | 8 Stud | 8 Stud | 4 Stud | 6 Stud | 6 Stud | 8 Stud | 5 Stud | 10 Stud | 2 Stud |
| Width - Outer Edges | 0.203" (5.16mm) | 0.375" (9.53mm) | 0.375" (9.53mm) | 0.203" (5.16mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.375" (9.53mm) | 0.250" (6.35mm) | 0.343" (8.71mm) | 0.171" (4.34mm) |
| Length - Overall | 0.695" (17.65mm) | 1.052" (26.72mm) | 0.787" (20.00mm) | 0.799" (20.29mm) | 0.799" (20.29mm) | 0.679" (17.25mm) | 1.052" (26.72mm) | 0.799" (20.29mm) | 1.005" (25.53mm) | 0.651" (16.54mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 22-26 AWG | 10-12 AWG | 22-26 AWG | 16-22 AWG | 16-22 AWG | 22-26 AWG | 10-12 AWG | 16-22 AWG | 14-16 AWG | 22-26 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | - | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Yellow | Yellow | Yellow | Red | Red | Yellow | Yellow | Red | Blue | Yellow |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Material | Phosphor Bronze | Brass | Phosphor Bronze | Phosphor Bronze | Copper | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
