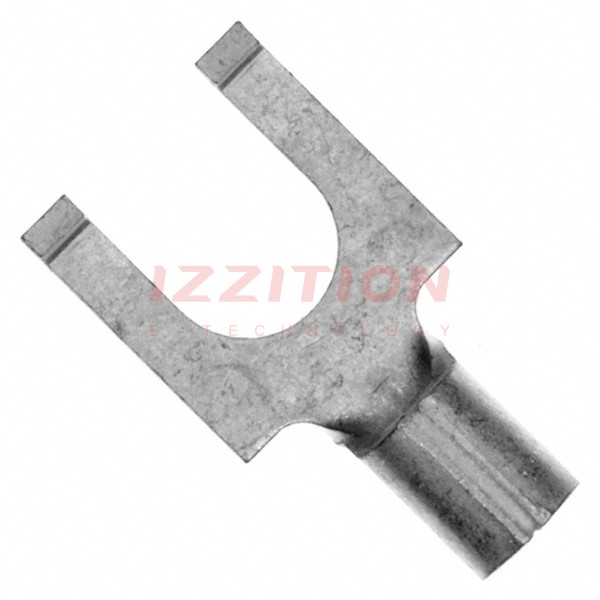

| Part Number | 52730-1 | 52734-1 | 52930-1 | 52430-1 | 52700-1 | 52710-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Terminal Type | Flanged | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap |
| Stud/Tab Size | 8 Stud | 6 Stud | 8 Stud | 6 Stud | 6 Stud | 8 Stud |
| Width - Outer Edges | 0.296" (7.52mm) | 0.250" (6.35mm) | 0.375" (9.53mm) | 0.312" (7.92mm) | 0.250" (6.35mm) | 0.281" (7.14mm) |
| Length - Overall | 0.514" (13.06mm) | 0.666" (16.92mm) | 0.860" (21.84mm) | 1.131" (28.73mm) | 0.709" (18.00mm) | 0.756" (19.20mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 22-26 AWG | 16-22 AWG | 10-12 AWG | 16-22 AWG | 16-22 AWG |
| Insulation | Non-Insulated | Non-Insulated | Insulated | Insulated | Non-Insulated | Non-Insulated |
| Features | Brazed Seam, Serrated Termination | - | Serrated Termination | Serrated Termination | Serrated Termination | Brazed Seam, Serrated Termination |
| Color | - | - | Red | Yellow | - | - |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Material | Copper | Phosphor Bronze | Copper | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
