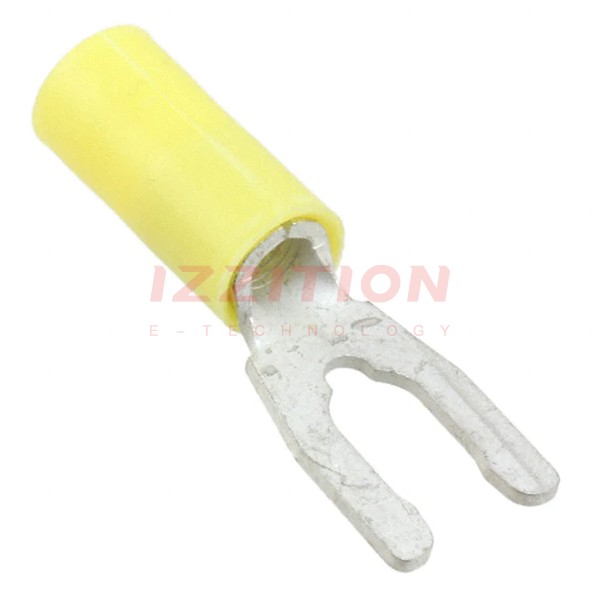

| Part Number | 52475-1 | 52475-3 | 52455-1 | 52465-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap |
| Stud/Tab Size | 10 Stud | 10 Stud | 10 Stud | 10 Stud |
| Width - Outer Edges | 0.375" (9.53mm) | 0.375" (9.53mm) | 0.343" (8.71mm) | 0.343" (8.71mm) |
| Length - Overall | 1.219" (30.96mm) | 1.278" (32.46mm) | 1.017" (25.83mm) | 1.017" (25.83mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 10-12 AWG | 10-12 AWG | 16-22 AWG | 14-16 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Yellow | Yellow | Red | Blue |
| Contact Finish | Tin | Tin | Tin | Tin |
| Contact Material | Brass | Brass | Brass | Brass |
