Please send RFQ , we will respond immediately.

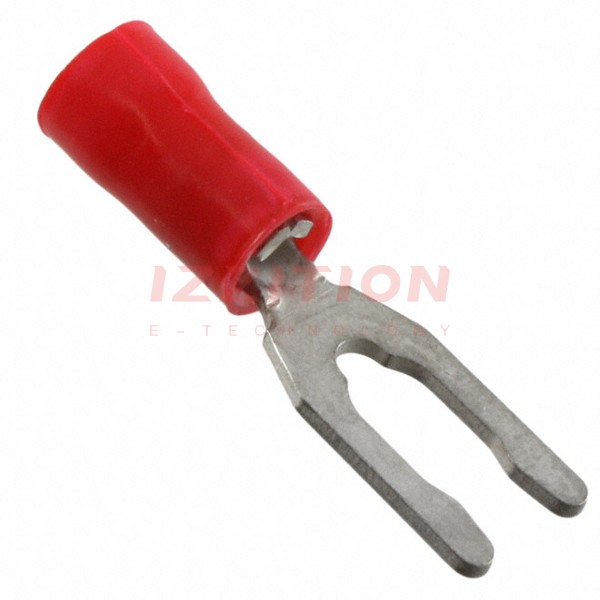

| Part Number | 52453-1 | 52463-1 | 52454-1 | 52455-1 | 52403-1 | 52433-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Terminal Type | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap |
| Stud/Tab Size | 6 Stud | 6 Stud | 8 Stud | 10 Stud | 6 Stud | 1/4 Stud |
| Width - Outer Edges | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.281" (7.14mm) | 0.343" (8.71mm) | 0.250" (6.35mm) | 0.437" (11.10mm) |
| Length - Overall | 0.945" (24.00mm) | 0.945" (24.00mm) | 0.991" (25.17mm) | 1.017" (25.83mm) | 0.847" (21.51mm) | 1.289" (32.74mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 14-16 AWG | 16-22 AWG | 16-22 AWG | 22-26 AWG | 10-12 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Red | Blue | Red | Red | Yellow | Yellow |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Brass | Phosphor Bronze | Phosphor Bronze |
