Please send RFQ , we will respond immediately.

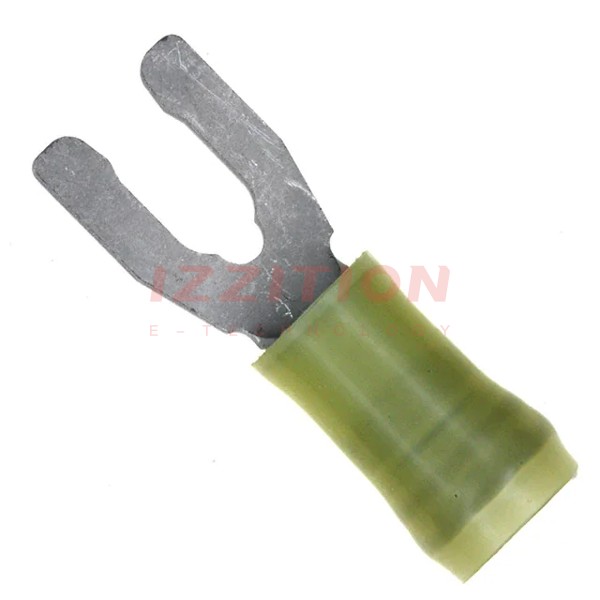

| Part Number | 52431-1 | 52931-1 | 52431-3 | 52432-1 | 52433-1 | 52411-1 | 52421-1 | 52430-1 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap |
| Stud/Tab Size | 8 Stud | 10 Stud | 8 Stud | 10 Stud | 1/4 Stud | 10 Stud | 8 Stud | 6 Stud |
| Width - Outer Edges | 0.375" (9.53mm) | 0.406" (10.31mm) | 0.375" (9.53mm) | 0.375" (9.53mm) | 0.437" (11.10mm) | 0.343" (8.71mm) | 0.281" (7.14mm) | 0.312" (7.92mm) |
| Length - Overall | 1.174" (29.82mm) | 0.908" (23.06mm) | 1.174" (29.82mm) | 1.219" (30.96mm) | 1.289" (32.74mm) | 1.005" (25.53mm) | 0.979" (24.87mm) | 1.131" (28.73mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 10-12 AWG | 16-22 AWG | 10-12 AWG | 10-12 AWG | 10-12 AWG | 16-22 AWG | 14-16 AWG | 10-12 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Yellow | Red | Yellow | Yellow | Yellow | Red | Blue | Yellow |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Material | Phosphor Bronze | Copper | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
