Please send RFQ , we will respond immediately.

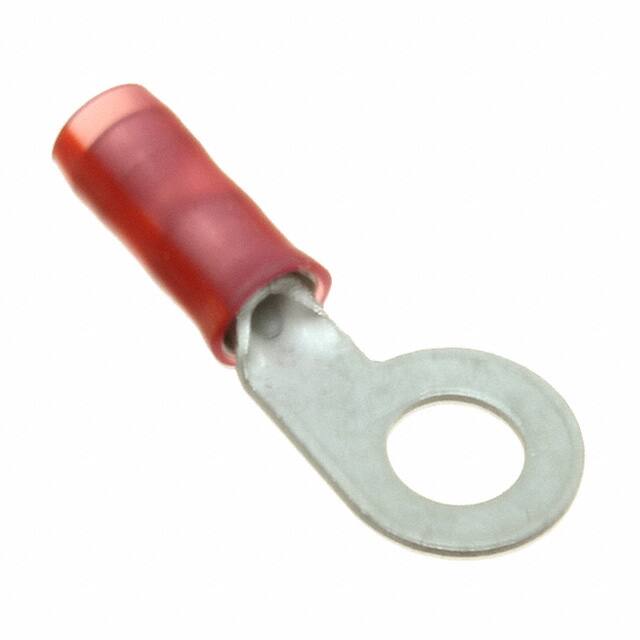

| Part Number | 52284-3 | 52284-2 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Circular | Circular |
| Stud/Tab Size | 10 Stud | 6 Stud |
| Thickness | 0.031" (0.79mm) | 0.031" (0.79mm) |
| Width - Outer Edges | 0.375" (9.53mm) | 0.375" (9.53mm) |
| Length - Overall | 0.946" (24.03mm) | 0.946" (24.03mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp |
| Wire Gauge | 20 AWG | 20 AWG |
| Insulation | Insulated | Insulated |
| Features | Insulation Restriction, Offset Holes, Serrations | Insulation Restriction, Offset Holes, Serrations |
| Color | Red, Red Stripe | Red, Red Stripe |
| Contact Material | Copper | Copper |
| Contact Finish | Tin | Tin |
