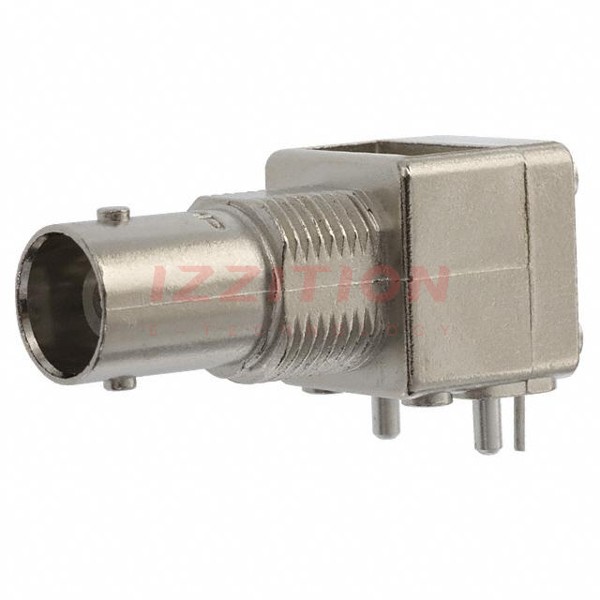

| Part Number | 5227661-1 | 5227671-1 | 5225661-1 | 5227161-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Obsolete | Active |
| Connector Style | BNC | BNC | N Type | BNC |
| Connector Type | Jack, Female Socket | Jack, Female Socket | Plug, Male Pin | Jack, Female Socket |
| Contact Termination | Solder | Solder | Crimp | Solder |
| Shield Termination | Solder | Solder | Crimp | Solder |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole | Free Hanging (In-Line) | Panel Mount, Through Hole, Right Angle |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut | - | Bulkhead - Front Side Nut |
| Cable Group | - | - | RG-9, 214 | - |
| Fastening Type | Bayonet Lock | Bayonet Lock | Threaded | Bayonet Lock |
| Frequency - Max | 4 GHz | 4 GHz | 11 GHz | 4 GHz |
| Number of Ports | 1 | 1 | 1 | 1 |
| Features | - | - | - | Board Guide, Isolated |
| Housing Color | Silver | Silver | Silver | Silver, White |
| Ingress Protection | - | - | - | - |
| Center Contact Material | Phosphor Bronze | Phosphor Bronze | Brass | Phosphor Bronze |
