Please send RFQ , we will respond immediately.

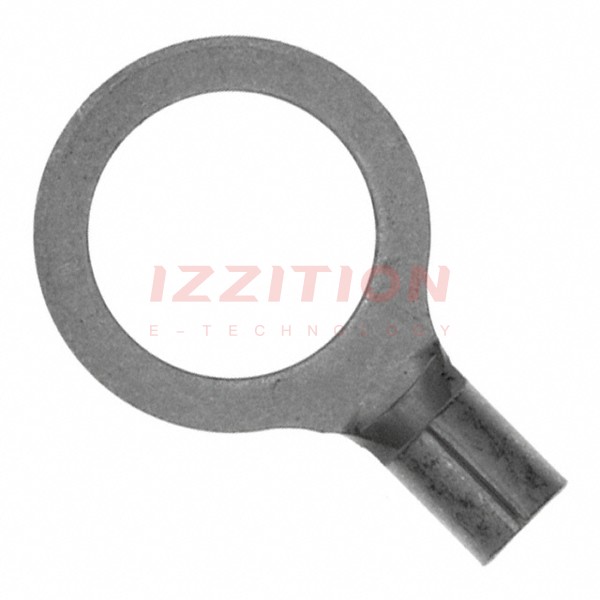

| Part Number | 52269-1 | 52262-1 | 52263-1 | 52264-1 | 52266-1 | 52267-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Terminal Type | Oval | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 1/2 Stud | 1/2 Stud | 10 Stud | 3/8 Stud | 3/8 Stud | 1/4 Stud |
| Thickness | 0.039" (0.99mm) | 0.040" (1.02mm) | 0.040" (1.02mm) | 0.045" (1.14mm) | 0.048" (1.22mm) | 0.057" (1.45mm) |
| Width - Outer Edges | 0.715" (18.16mm) | 0.875" (22.23mm) | 0.431" (10.95mm) | 0.625" (15.88mm) | 0.679" (17.25mm) | 0.675" (17.15mm) |
| Length - Overall | 1.102" (27.99mm) | 1.860" (47.24mm) | 1.576" (40.03mm) | 1.906" (48.41mm) | 2.014" (51.16mm) | 2.071" (52.60mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 10-12 AWG | 8 AWG | 8 AWG | 6 AWG | 4 AWG | 2 AWG |
| Insulation | Non-Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Serrated Termination | - | Serrated Termination | - | - | Serrated Termination |
| Color | - | Red | Red | Blue | Yellow | Red |
| Contact Material | Copper | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin |
