Please send RFQ , we will respond immediately.

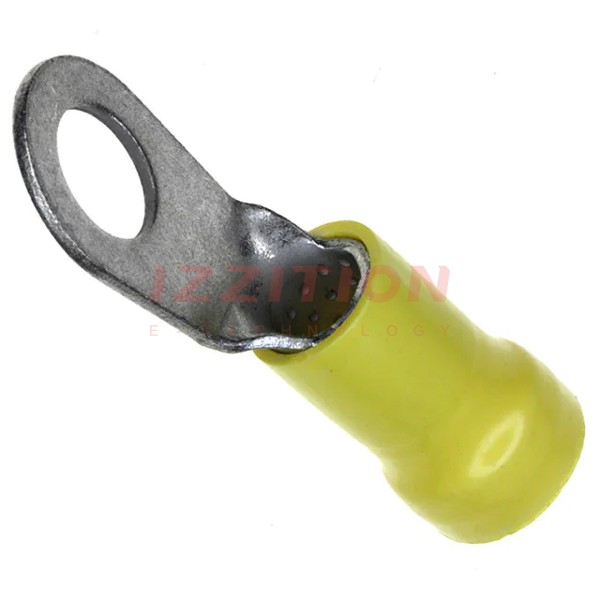

| Part Number | 52266-4 | 52266-9 | 52263-4 | 52264-4 | 52266-1 | 52266-3 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 3/8 Stud | 5/16 Stud | 10 Stud | 5/16 Stud | 3/8 Stud | 5/16 Stud |
| Thickness | 0.048" (1.22mm) | 0.048" (1.22mm) | 0.040" (1.02mm) | 0.045" (1.14mm) | 0.048" (1.22mm) | 0.048" (1.22mm) |
| Width - Outer Edges | 0.679" (17.25mm) | 0.679" (17.25mm) | 0.431" (10.95mm) | 0.625" (15.88mm) | 0.679" (17.25mm) | 0.679" (17.25mm) |
| Length - Overall | 2.014" (51.16mm) | 2.014" (51.16mm) | 1.556" (39.52mm) | 1.906" (48.41mm) | 2.014" (51.16mm) | 2.014" (51.16mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 4 AWG | 4 AWG | 8 AWG | 6 AWG | 4 AWG | 4 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | - | - | Serrated Termination | - | - | - |
| Color | Yellow | Yellow | Red | Blue | Yellow | Yellow |
| Contact Material | Copper | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin |
