52266-3
  • Share:

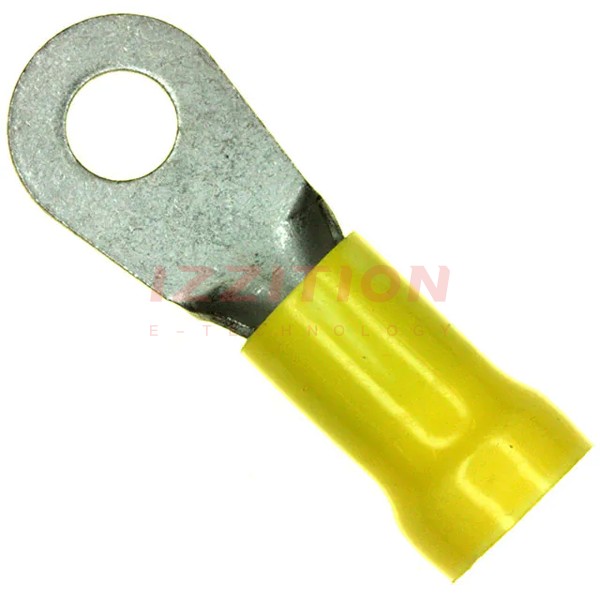

TE Connectivity AMP Connectors 52266-3

Manufacturer No:
52266-3
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
52266-3 Datasheet
ECAD Model:
-
Description:
CONN RING CIRC 4AWG #5/16 CRIMP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Terminal Type:Circular
Stud/Tab Size:5/16 Stud
Thickness:0.048" (1.22mm)
Width - Outer Edges:0.679" (17.25mm)
Length - Overall:2.014" (51.16mm)
Mounting Type:Free Hanging (In-Line)
Termination:Crimp
Wire Gauge:4 AWG
Insulation:Insulated
Features:-
Color:Yellow
Contact Material:Copper
Contact Finish:Tin
0 Remaining View Similar

In Stock

$2.93
273

Please send RFQ , we will respond immediately.

Similar Products

Part Number 52266-3 52266-4   52266-9   52263-3   52265-3   52266-1
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active Active Active
Terminal Type Circular Circular Circular Circular Circular Circular
Stud/Tab Size 5/16 Stud 3/8 Stud 5/16 Stud 10 Stud 10 Stud 3/8 Stud
Thickness 0.048" (1.22mm) 0.048" (1.22mm) 0.048" (1.22mm) 0.040" (1.02mm) 0.045" (1.14mm) 0.048" (1.22mm)
Width - Outer Edges 0.679" (17.25mm) 0.679" (17.25mm) 0.679" (17.25mm) 0.431" (10.95mm) 0.468" (11.89mm) 0.679" (17.25mm)
Length - Overall 2.014" (51.16mm) 2.014" (51.16mm) 2.014" (51.16mm) 1.576" (40.03mm) 1.719" (43.66mm) 2.014" (51.16mm)
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line)
Termination Crimp Crimp Crimp Crimp Crimp Crimp
Wire Gauge 4 AWG 4 AWG 4 AWG 8 AWG 6 AWG 4 AWG
Insulation Insulated Insulated Insulated Insulated Insulated Insulated
Features - - - Serrated Termination - -
Color Yellow Yellow Yellow Red Blue Yellow
Contact Material Copper Copper Copper Copper Copper Copper
Contact Finish Tin Tin Tin Tin Tin Tin
