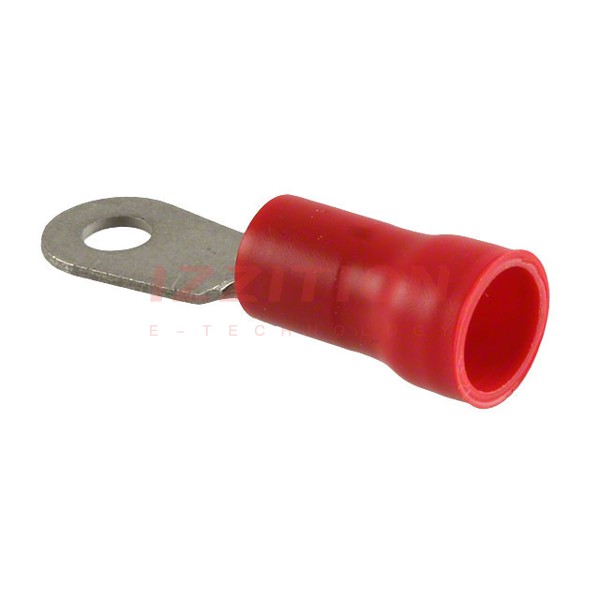

| Part Number | 52263-2 | 52273-2 | 52263-4 | 52263-5 | 52263-3 | 52263-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 10 Stud | 4 Stud | 10 Stud | 10 Stud | 10 Stud | 10 Stud |
| Thickness | 0.040" (1.02mm) | 0.031" (0.79mm) | 0.040" (1.02mm) | 0.040" (1.02mm) | 0.040" (1.02mm) | 0.040" (1.02mm) |
| Width - Outer Edges | 0.431" (10.95mm) | 0.218" (5.54mm) | 0.431" (10.95mm) | 0.431" (10.95mm) | 0.431" (10.95mm) | 0.431" (10.95mm) |
| Length - Overall | 1.556" (39.52mm) | 0.734" (18.64mm) | 1.556" (39.52mm) | 1.556" (39.52mm) | 1.576" (40.03mm) | 1.576" (40.03mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 8 AWG | 18 AWG | 8 AWG | 8 AWG | 8 AWG | 8 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Insulation Restriction, Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Red | Red, White Stripe | Red | Red | Red | Red |
| Contact Material | Copper | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin |
