Please send RFQ , we will respond immediately.

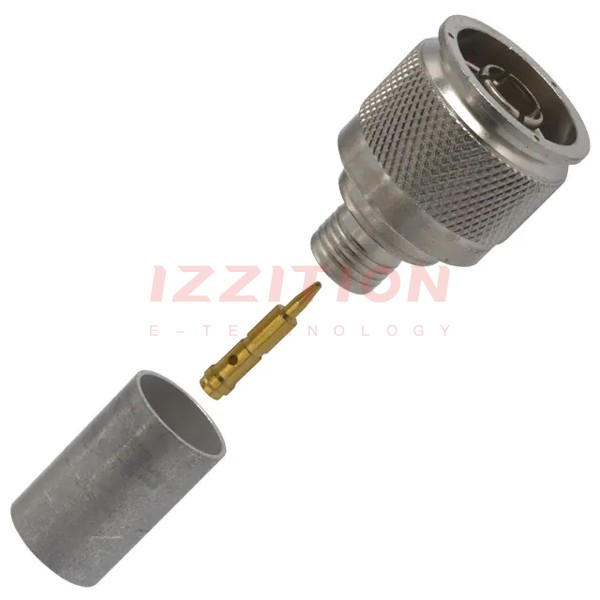

| Part Number | 5225661-2 | 5225662-2 | 5225669-2 | 5225664-2 | 5225661-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Style | N Type | N Type | N Type | N Type | N Type |
| Connector Type | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin | Jack, Female Socket | Plug, Male Pin |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp |
| Shield Termination | Crimp | Crimp | Crimp | Crimp | Crimp |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - | - | - | - |
| Cable Group | RG-213 | RG-213 | RG-213 | RG-8, 213 | RG-9, 214 |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded |
| Frequency - Max | 11 GHz | 11 GHz | 11 GHz | 11 GHz | 11 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | - | - | - |
| Housing Color | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | - | Weatherproof | - | Weatherproof | - |
| Center Contact Material | Brass | - | - | Beryllium Copper | Brass |
