Please send RFQ , we will respond immediately.

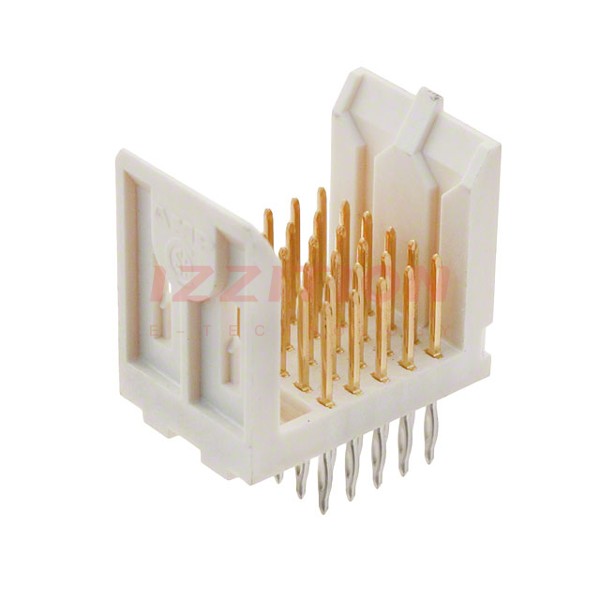

| Part Number | 5223002-1 | 5223004-1 | 5223002-2 | 5223002-4 | 5223008-1 | 5223007-1 | 5223092-1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Connector Usage | - | - | - | - | - | - | - |
| Connector Type | Header, Male Pins | Receptacle, Female Sockets | Header, Male Pins | Header, Male Pins | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Blade Sockets |
| Connector Style | Futurebus | Futurebus | Futurebus | Futurebus | Futurebus | Futurebus | Blade Power |
| Number of Positions | 30 | 30 | 60 | 120 | 30 | 30 | 10 |
| Number of Positions Loaded | All | All | All | All | All | All | All |
| Pitch | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.236" (6.00mm) |
| Number of Rows | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of Columns | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Board Edge, Through Hole, Right Angle | Through Hole | Through Hole | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle |
| Termination | Press-Fit | Solder | Press-Fit | Press-Fit | Press-Fit | Solder | Solder |
| Contact Layout, Typical | - | - | - | - | - | - | 10 Power |
| Features | - | Board Guide, Spacer | - | - | Board Guide, Spacer | Board Guide, Spacer | Board Guide, Spacer |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | - | - | - | - | - | - | - |
| Color | Natural | Natural | Natural | Natural | Natural | Natural | - |
