Please send RFQ , we will respond immediately.

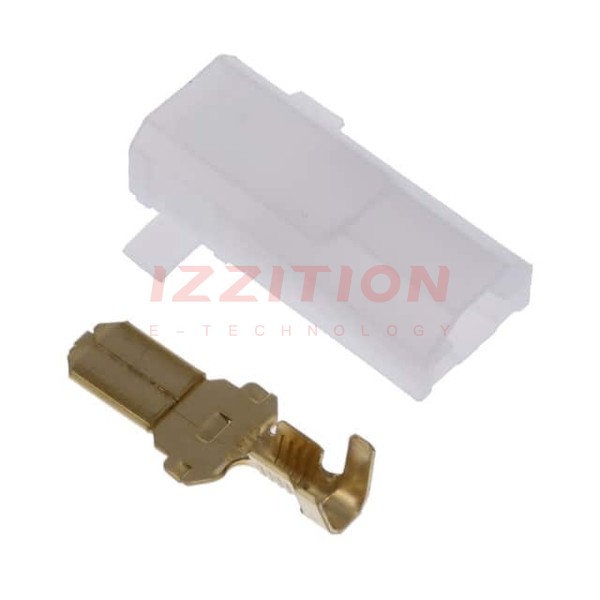

| Part Number | 521747-1 | 521547-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Standard | Standard |
| Gender | Male | Female |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | - | - |
| Length - Overall | 1.530" (38.86mm) | 1.366" (34.70mm) |
| Termination | Crimp | Crimp |
| Wire Gauge | 14-18 AWG | 14-18 AWG |
| Insulation | Mating End Insulated | Fully Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - |
| Color | Natural | White |
| Contact Material | Brass | Brass |
| Contact Finish | - | - |
