Please send RFQ , we will respond immediately.

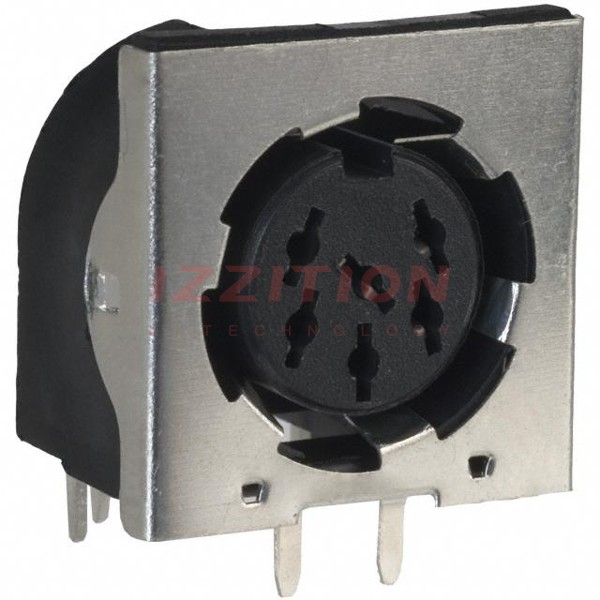

| Part Number | 5212045-1 | 5212047-1 | 5212046-1 | 5212044-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 6 | 8 | 7 | 5 |
| Shell Size - Insert | DIN (240 Degree) | DIN (270 Degree) | DIN (270 Degree) | DIN (180 Degree) |
| Shell Size, MIL | - | - | - | - |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Mounting Feature | - | - | - | - |
| Termination | Solder | Solder | Solder | Solder |
| Fastening Type | Push-Pull | Push-Pull | Push-Pull | Push-Pull |
| Orientation | Keyed | Keyed | Keyed | Keyed |
| Primary Material | Plastic | Plastic | Plastic | Plastic |
| Shell Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Shell Finish | - | - | - | - |
| Contact Finish - Mating | Tin | Tin | Tin | Tin |
| Color | - | - | - | - |
| Ingress Protection | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| Current Rating (Amps) | 7.5A | 7.5A | 7.5A | 7.5A |
| Voltage Rating | 250VAC | 250VAC | 250VAC | 250VAC |
| Cable Opening | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
