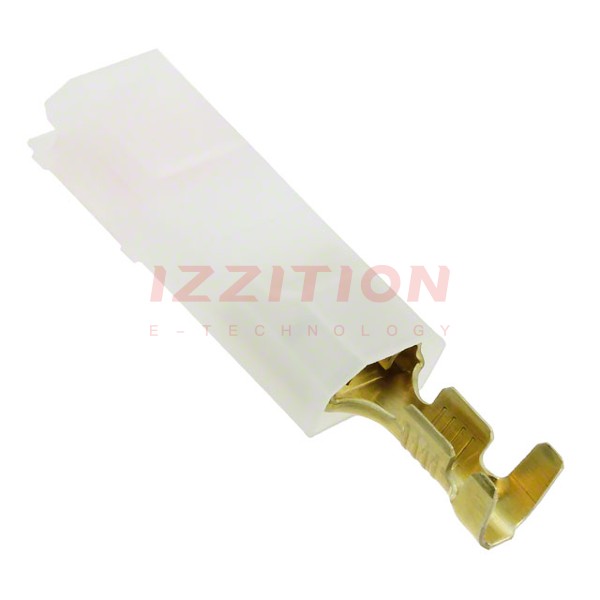

| Part Number | 521086-1 | 521087-1 | 521081-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Standard | Angled - 90°, Flag | Standard |
| Gender | Female | Female | Female |
| Tab Width | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | - | - | - |
| Length - Overall | 1.085" (27.56mm) | - | 1.366" (34.70mm) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 16-20 AWG | 14-18 AWG | 14-18 AWG |
| Insulation | Fully Insulated | Fully Insulated | Fully Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) |
| Features | - | - | - |
| Color | Natural, Red Stripe | Black | Natural, Red Stripe |
| Contact Material | Brass | Steel | Brass |
| Contact Finish | - | Nickel | - |
