Please send RFQ , we will respond immediately.

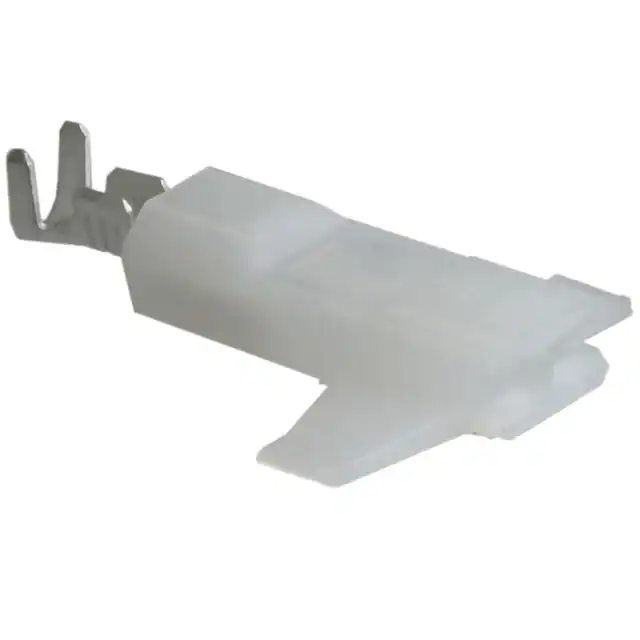

| Part Number | 520973-2 | 520974-2 | 521973-2 | 520963-2 | 520971-2 | 520973-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard | Angled - 90°, Flag | Standard |
| Gender | Female | Female | Female | Female | Female | Female |
| Tab Width | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) |
| Tab Length | - | - | - | - | - | - |
| Length - Overall | 1.085" (27.56mm) | 1.370" (34.80mm) | 1.370" (34.80mm) | 1.366" (34.70mm) | - | 1.085" (27.56mm) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 16-20 AWG | 10-14 AWG | 10-14 AWG | 14-18 AWG | 14-18 AWG | 16-20 AWG |
| Insulation | Fully Insulated | Fully Insulated | Fully Insulated | Fully Insulated | Fully Insulated | Fully Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) |
| Features | - | - | - | - | - | - |
| Color | Natural | Natural | Black | Natural | Natural | Natural |
| Contact Material | Brass | Brass | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | - |
