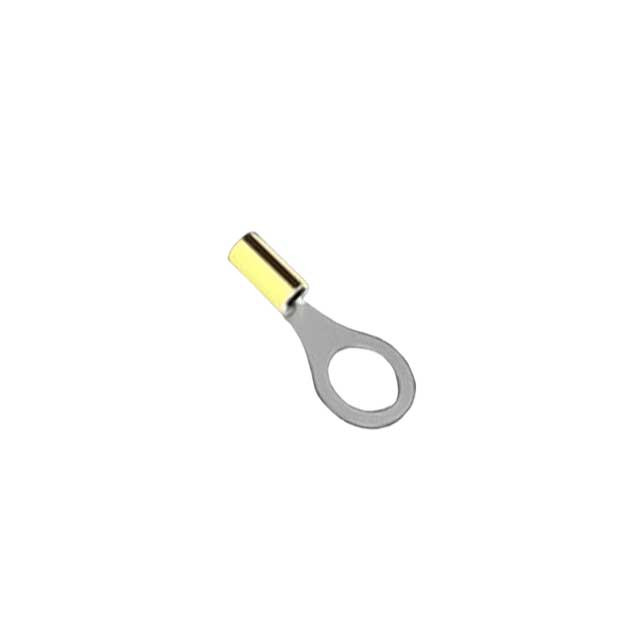

| Part Number | 52077-2 | 52077-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Circular | Circular |
| Stud/Tab Size | 1/2 Stud | 1/2 Stud |
| Thickness | 0.040" (1.02mm) | 0.040" (1.02mm) |
| Width - Outer Edges | 0.715" (18.16mm) | 0.715" (18.16mm) |
| Length - Overall | 1.490" (37.85mm) | 1.490" (37.85mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp |
| Wire Gauge | 10 AWG | 12 AWG |
| Insulation | Insulated | Insulated |
| Features | Insulation Restriction, Serrated Termination | Insulation Restriction, Serrated Termination |
| Color | Yellow, Brown Stripe | Yellow, Yellow Stripe |
| Contact Material | Copper | Copper |
| Contact Finish | Tin | Tin |
