5205859-1
  • Share:

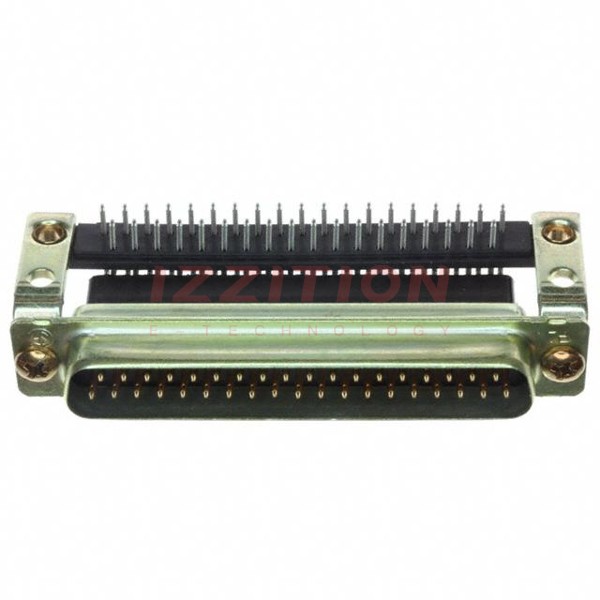

TE Connectivity AMP Connectors 5205859-1

Manufacturer No:
5205859-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
5205859-1 Datasheet
ECAD Model:
-
Description:
CONN D-SUB PLUG 37POS R/A SLDR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Style:D-Sub
Connector Type:Plug, Male Pins
Number of Positions:37
Number of Rows:2
Mounting Type:Through Hole, Right Angle
Shell Size, Connector Layout:4 (DC, C)
Contact Type:Signal
Flange Feature:Mating Side, Standard Screws (4-40)
Termination:Solder
Primary Material:-
Shell Material, Finish:Steel, Yellow Chromate Plated Zinc
Contact Finish:Gold
Contact Finish Thickness:Flash
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Current Rating (Amps):6A
Backset Spacing:0.545" (13.84mm)
Features:Mounting Brackets
0 Remaining View Similar

In Stock

$29.63
20

Please send RFQ , we will respond immediately.

Similar Products

Part Number 5205859-1 5205857-1   5205858-1
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active
Connector Style D-Sub D-Sub D-Sub
Connector Type Plug, Male Pins Plug, Male Pins Receptacle, Female Sockets
Number of Positions 37 25 25
Number of Rows 2 2 2
Mounting Type Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle
Shell Size, Connector Layout 4 (DC, C) 3 (DB, B) 3 (DB, B)
Contact Type Signal Signal Signal
Flange Feature Mating Side, Standard Screws (4-40) Mating Side, Standard Screws (4-40) Mating Side, Standard Screws (4-40)
Termination Solder Solder Solder
Primary Material - - -
Shell Material, Finish Steel, Yellow Chromate Plated Zinc Steel, Yellow Chromate Plated Zinc Steel, Yellow Chromate Plated Zinc
Contact Finish Gold Gold Gold
Contact Finish Thickness Flash Flash Flash
Ingress Protection - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0
Current Rating (Amps) 6A 6A 6A
Backset Spacing 0.545" (13.84mm) 0.545" (13.84mm) 0.545" (13.84mm)
Features Mounting Brackets Mounting Brackets Mounting Brackets
