Please send RFQ , we will respond immediately.

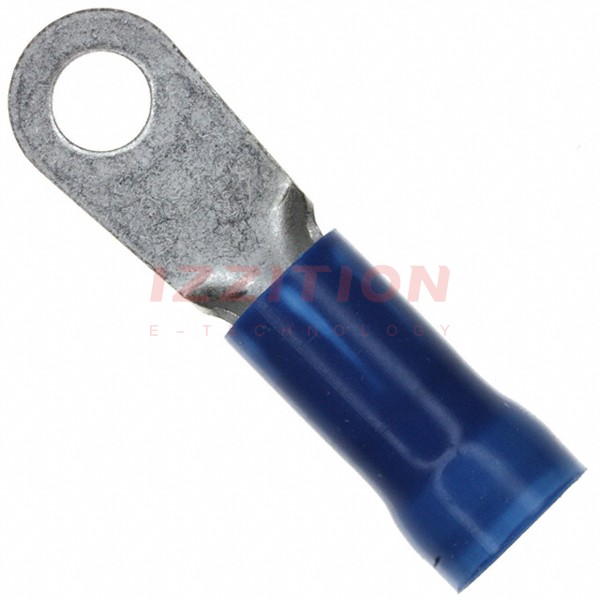

| Part Number | 52042-9 | 52041-9 | 52042-1 | 52042-2 | 52042-3 | 52042-4 | 52042-5 | 52042-7 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 1/4 Stud | 1/4 Stud | 1/4 Stud | 8 Stud | 1/4 Stud | 10 Stud | 10 Stud | 1/4 Stud |
| Thickness | 0.045" (1.14mm) | 0.040" (1.02mm) | 0.045" (1.14mm) | 0.045" (1.14mm) | 0.045" (1.14mm) | 0.045" (1.14mm) | 0.045" (1.14mm) | 0.045" (1.14mm) |
| Width - Outer Edges | 0.500" (12.70mm) | 0.478" (12.14mm) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) |
| Length - Overall | 1.869" (47.47mm) | 1.600" (40.64mm) | 1.844" (46.84mm) | 1.869" (47.47mm) | 1.869" (47.47mm) | 1.844" (46.84mm) | 1.869" (47.47mm) | 1.844" (46.84mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 6 AWG | 8 AWG | 6 AWG | 6 AWG | 6 AWG | 6 AWG | 6 AWG | 6 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Blue | Red | Blue | Blue | Blue | Blue | Blue | Blue |
| Contact Material | Copper | Copper | Copper | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
