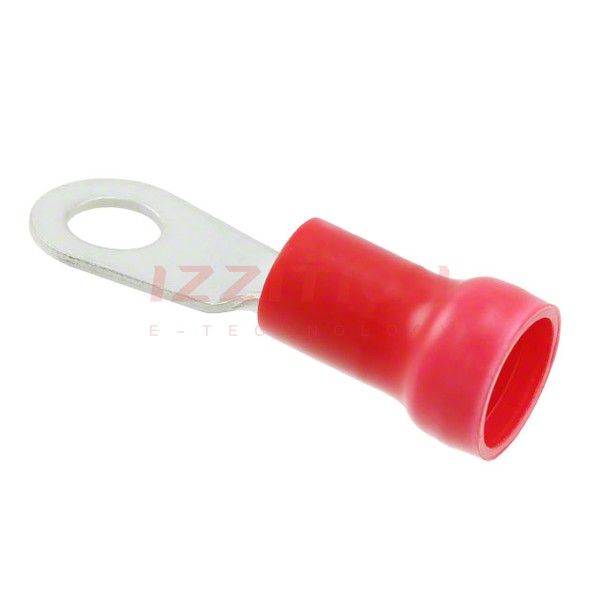

| Part Number | 52041-7 | 52041-9 | 52043-7 | 52042-7 | 52041-1 | 52041-3 | 52041-6 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 1/4 Stud | 1/4 Stud | 1/4 Stud | 1/4 Stud | 1/4 Stud | 1/4 Stud | 8 Stud |
| Thickness | 0.040" (1.02mm) | 0.040" (1.02mm) | 0.048" (1.22mm) | 0.045" (1.14mm) | 0.040" (1.02mm) | 0.040" (1.02mm) | 0.040" (1.02mm) |
| Width - Outer Edges | 0.478" (12.14mm) | 0.478" (12.14mm) | 0.546" (13.87mm) | 0.500" (12.70mm) | 0.478" (12.14mm) | 0.478" (12.14mm) | 0.478" (12.14mm) |
| Length - Overall | 1.586" (40.28mm) | 1.600" (40.64mm) | 1.948" (49.48mm) | 1.844" (46.84mm) | 1.586" (40.28mm) | 1.600" (40.64mm) | 1.586" (40.28mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 8 AWG | 8 AWG | 4 AWG | 6 AWG | 8 AWG | 8 AWG | 8 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Red | Red | Yellow | Blue | Red | Red | Red |
| Contact Material | Copper | Copper | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
