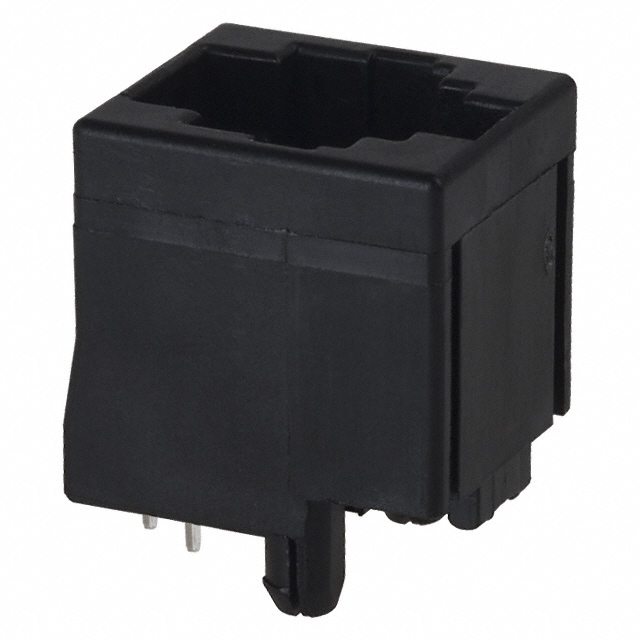

| Part Number | 520258-2 | 5520258-2 | 520258-3 | 520250-2 | 520257-2 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Connector Type | Jack | Jack | Jack | Jack | Jack |
| Number of Positions/Contacts | 6p4c (RJ11, RJ14) | 6p4c (RJ11, RJ14) | 6p6c (RJ11, RJ12, RJ14, RJ25) | 6p4c (RJ11, RJ14) | 4p4c (RJ9, RJ10, RJ22) |
| Number of Ports | 1 | 1 | 1 | 1 | 1 |
| Number of Rows | 1 | 1 | 1 | 1 | 1 |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Orientation | Vertical | Vertical | Vertical | 90° Angle (Right) | Vertical |
| Termination | Solder | Solder | Solder | Solder | Solder |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| Ratings | Cat3 | Cat3 | Cat3 | Cat3 | Cat3 |
| Features | Board Lock, Panel Stops | Board Lock, Panel Stops | Board Lock, Panel Stops | Board Lock, Panel Stops | Board Lock, Panel Stops |
| LED Color | Does Not Contain LED | Does Not Contain LED | Does Not Contain LED | Does Not Contain LED | Does Not Contain LED |
| Ingress Protection | - | - | - | - | - |
| Tab Direction | User Selectable | User Selectable | User Selectable | Down | User Selectable |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Gold | Gold | Gold | Gold | Gold |
