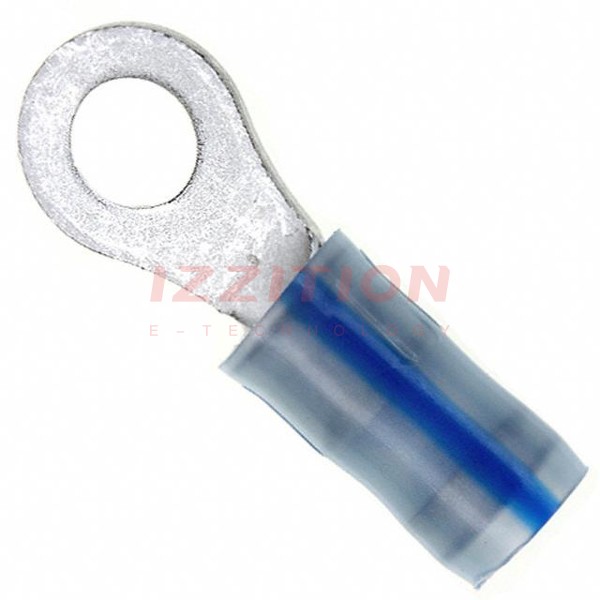

| Part Number | 51864-7 | 51864-8 | 51864-9 | 51863-7 | 51864-1 | 51864-2 | 51864-3 | 51864-4 | 51864-5 | 51864-6 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 10 Stud | 6 Stud | 10 Stud | 6 Stud | 8 Stud | 10 Stud | 6 Stud | 10 Stud | 8 Stud | 6 Stud |
| Thickness | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) |
| Width - Outer Edges | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.250" (6.35mm) | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.312" (7.92mm) |
| Length - Overall | 0.906" (23.01mm) | 0.906" (23.01mm) | 0.906" (23.01mm) | 0.844" (21.44mm) | 0.844" (21.44mm) | 0.844" (21.44mm) | 0.844" (21.44mm) | 0.844" (21.44mm) | 0.844" (21.44mm) | 0.906" (23.01mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 16 AWG | 14 AWG | 14 AWG | 18 AWG | 14-16 AWG | 14-16 AWG | 14-16 AWG | 14-16 AWG | 14-16 AWG | 16 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Insulation Restriction | Insulation Restriction | Insulation Restriction | Insulation Restriction | - | - | - | - | - | Insulation Restriction |
| Color | Blue, Blue Stripe | Blue, Green Stripe | Blue, Green Stripe | Red, White Stripe | Blue | Blue | Blue | Blue | Blue | Blue, Blue Stripe |
| Contact Material | Copper | Copper | Copper | Copper | Copper | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
