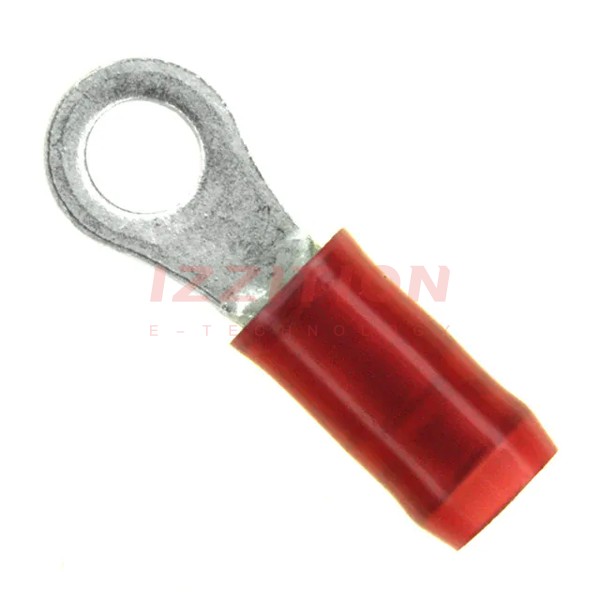

| Part Number | 51863-1 | 51873-1 | 51863-3 | 51863-2 | 51863-4 | 51863-7 | 51864-1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 6 Stud | 6 Stud | 6 Stud | 6 Stud | 6 Stud | 6 Stud | 8 Stud |
| Thickness | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) |
| Width - Outer Edges | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.312" (7.92mm) |
| Length - Overall | 0.782" (19.86mm) | 0.559" (14.20mm) | 0.844" (21.44mm) | 0.844" (21.44mm) | 0.844" (21.44mm) | 0.844" (21.44mm) | 0.844" (21.44mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 16-22 AWG | 20 AWG | 22 AWG | 18 AWG | 18 AWG | 14-16 AWG |
| Insulation | Insulated | Non-Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Insulation Restriction | Insulation Restriction | Insulation Restriction | Insulation Restriction | - |
| Color | Red | - | Red, Red Stripe | Red, Green Stripe | Red, White Stripe | Red, White Stripe | Blue |
| Contact Material | Copper | Copper | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
