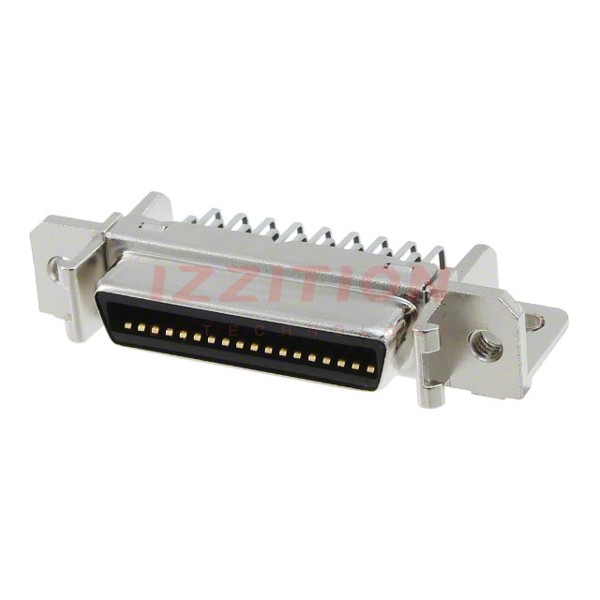

| Part Number | 5178238-5 | 5178238-7 | 5178238-8 | 5178238-1 | 5178238-4 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Obsolete | Active | Active |
| Connector Style | Outer Shroud Contacts | Outer Shroud Contacts | Outer Shroud Contacts | Outer Shroud Contacts | Outer Shroud Contacts |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle |
| Number of Positions | 36 | 50 | 68 | 14 | 26 |
| Number of Rows | 2 | 2 | 2 | 2 | 2 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle |
| Termination | Solder | Solder | Solder | Solder | Solder |
| Flange Feature | Board Side (M2.6); Latchblocks | Board Side (M2.6); Latchblocks | Board Side (M2.6); Latchblocks | Board Side (M2.6); Latchblocks | - |
| Type | - | - | - | - | - |
| Features | Board Lock | Board Lock | Board Lock | Board Lock | Board Lock |
| Contact Finish | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 11.8µin (0.30µm) | 11.8µin (0.30µm) | 11.8µin (0.30µm) | 11.8µin (0.30µm) | 30.0µin (0.76µm) |
