Please send RFQ , we will respond immediately.

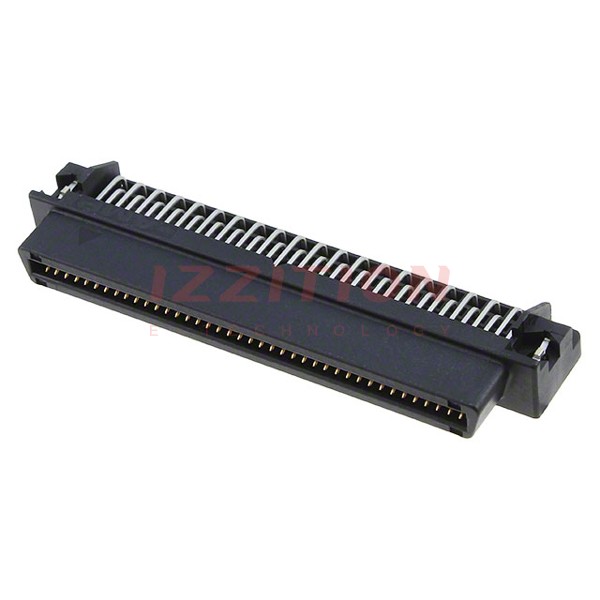

| Part Number | 5175474-9 | 5175475-9 | 5175472-9 | 5175474-5 | 5175474-6 | 5175474-7 | 5175474-8 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Active | Active | Obsolete | Active |
| Connector Style | Outer Shroud Contacts | - | Center Strip Contacts | Outer Shroud Contacts | Outer Shroud Contacts | - | Outer Shroud Contacts |
| Connector Type | Receptacle | - | Plug | Receptacle | Receptacle | - | Receptacle |
| Number of Positions | 80 | - | 80 | 40 | 50 | - | 68 |
| Number of Rows | 2 | - | 2 | 2 | 2 | - | 2 |
| Mounting Type | Through Hole, Right Angle | - | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | - | Through Hole, Right Angle |
| Termination | Solder | - | Solder | Solder | Solder | - | Solder |
| Flange Feature | - | - | - | - | - | - | - |
| Type | Board to Board, High Density | - | Board to Board, High Density | Board to Board, High Density | Board to Board, High Density | - | Board to Board, High Density |
| Features | Board Lock | - | Board Lock | Board Lock | Board Lock | - | Board Lock |
| Contact Finish | Gold | - | Gold | Gold | Gold | - | Gold |
| Contact Finish Thickness | 8.00µin (0.203µm) | - | 8.00µin (0.203µm) | 8.00µin (0.203µm) | 8.00µin (0.203µm) | - | 8.00µin (0.203µm) |
