Please send RFQ , we will respond immediately.

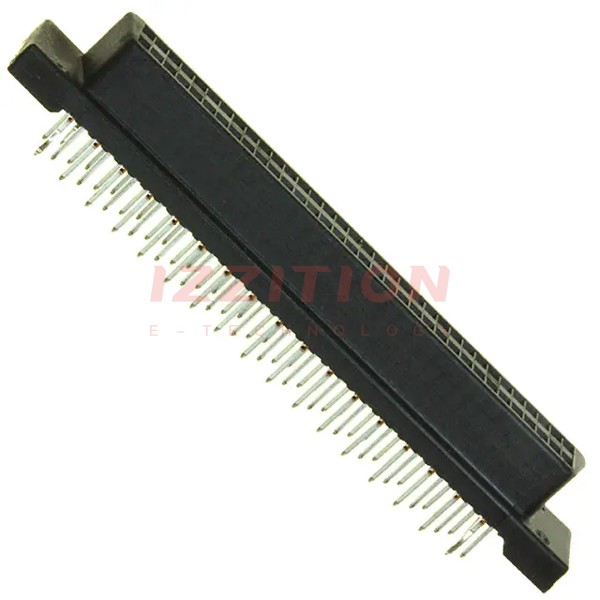

| Part Number | 5174681-7 | 5174684-7 | 5174683-7 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete | Obsolete |
| Connector Style | D-Type, Board to Board | D-Type, Board to Board | D-Type, Board to Board |
| Connector Type | Plug, Female Sockets | Cap, Male Pins | Cap, Male Pins |
| Number of Positions | 68 | 68 | 68 |
| Number of Rows | 2 | 2 | 2 |
| Mounting Type | Through Hole | Through Hole, Right Angle | Through Hole |
| Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row | 0.050 Pitch x 0.100 Row to Row | 0.050 Pitch x 0.100 Row to Row |
| Contact Type | Signal | Signal | Signal |
| Flange Feature | - | - | - |
| Termination | Kinked Pin | Kinked Pin | Kinked Pin |
| Primary Material | - | - | - |
| Shell Material, Finish | - | - | - |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | 8.00µin (0.203µm) | 8.00µin (0.203µm) | 8.00µin (0.203µm) |
| Ingress Protection | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Current Rating (Amps) | 1A | 1A | 1A |
| Backset Spacing | - | - | - |
| Features | - | - | - |
