Please send RFQ , we will respond immediately.

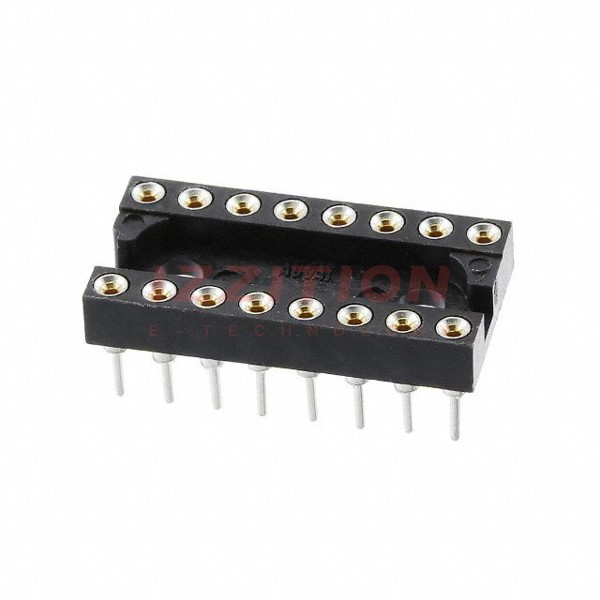

| Part Number | 516-AG11D | 516-AG10D |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete |
| Type | DIP, 0.3" (7.62mm) Row Spacing | DIP, 0.3" (7.62mm) Row Spacing |
| Number of Positions or Pins (Grid) | 16 (2 x 8) | 16 (2 x 8) |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 25.0µin (0.63µm) | - |
| Contact Material - Mating | Copper Alloy | Beryllium Copper |
| Mounting Type | Through Hole | Through Hole |
| Features | Closed Frame | Closed Frame |
| Termination | Solder | Solder |
| Pitch - Post | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Finish - Post | Tin-Lead | - |
| Contact Finish Thickness - Post | - | - |
| Contact Material - Post | Copper Alloy | Brass |
| Housing Material | Polyester | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 125°C |
