Please send RFQ , we will respond immediately.

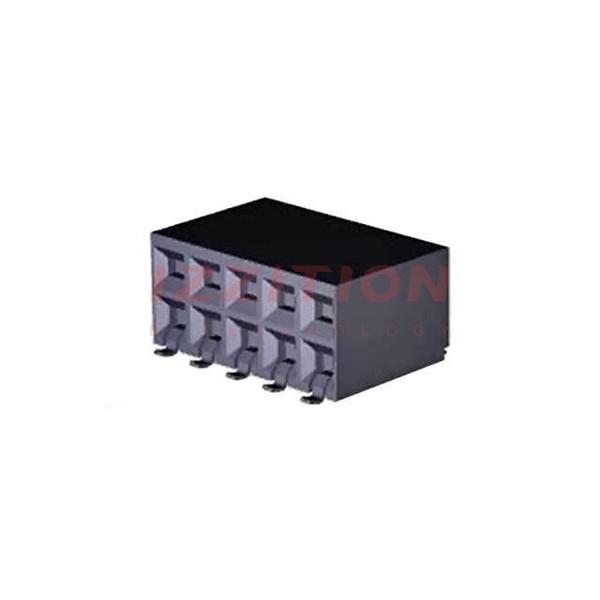

| Part Number | 5147735-4 | 5147733-4 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Receptacle | Receptacle |
| Contact Type | Female Socket | Female Socket |
| Style | Board to Board | Board to Board |
| Number of Positions | 10 | 5 |
| Number of Positions Loaded | All | All |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 2 | 1 |
| Row Spacing - Mating | 0.100" (2.54mm) | - |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Termination | Solder | Solder |
| Fastening Type | Push-Pull | Push-Pull |
| Contact Finish - Mating | Tin | Tin |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) | 150.0µin (3.81µm) |
| Insulation Color | Black | Black |
| Insulation Height | 0.238" (6.05mm) | 0.137" (3.47mm) |
| Contact Length - Post | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Contact Finish - Post | Tin | Tin |
| Mated Stacking Heights | - | - |
| Ingress Protection | - | - |
| Features | - | - |
| Current Rating (Amps) | 2A | 2A |
| Voltage Rating | - | - |
