Please send RFQ , we will respond immediately.

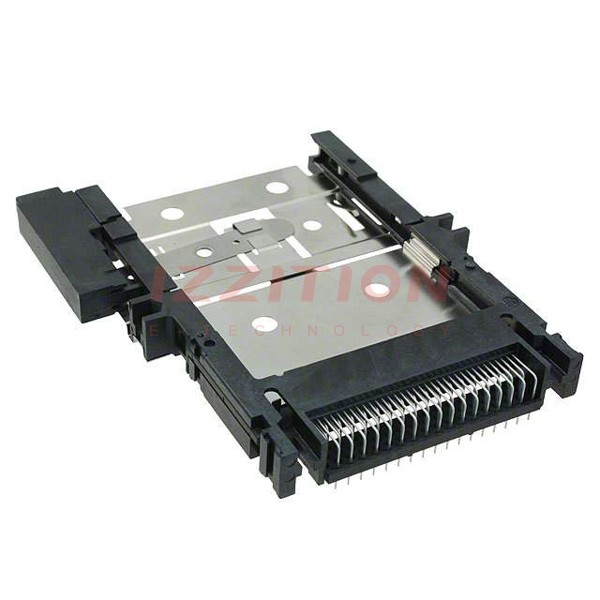

| Part Number | 5146026-1 | 5146046-1 | 5146027-1 | 5146029-1 | 5146025-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Obsolete | Obsolete | Active |
| Card Type | PCMCIA | PCMCIA | PCMCIA | PCMCIA | PCMCIA |
| Number of Positions | 68 | 68, 68 | 68, 68 | 68 | 68 |
| Connector Type | Connector and Ejector | Stacked Connector | Stacked Connector | Connector and Ejector | Connector and Ejector |
| Insertion, Removal Method | Push In, Push Out | Push In, Pull Out | Push In, Pull Out | Push In, Push Out | Push In, Push Out |
| Ejector Side | Right | - | - | Left | Right |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Features | Board Guide, Card Guide | - | - | - | Board Guide |
| Height Above Board | 0.378" (9.60mm) | 0.653" (16.59mm) | 0.550" (13.97mm) | 0.550" (13.97mm) | 0.275" (6.99mm) |
| Mounting Feature | Normal, Standard - Top | Normal, Standard - Top | Normal, Standard - Top | Normal, Standard - Top | Normal, Standard - Top |
| Contact Finish | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
