5145274-1

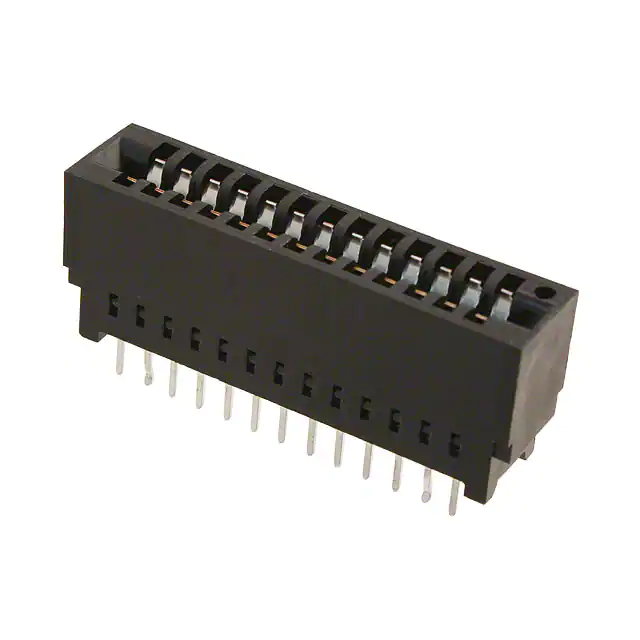

5145274-1 Image
×
Favorite
Compare
Add to RFQ
Share:
TE Connectivity AMP Connectors 5145274-1
Manufacturer No:
5145274-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
5145274-1 Datasheet
ECAD Model:
-
Description:
CONN EDGE DUAL FMALE 26POS 0.100
Delivery:
Payment:
Product Attributes
Card Type:
Non Specified - Dual Edge
Gender:
Female
Number of Positions/Bay/Row:
-
Number of Positions:
26
Card Thickness:
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows:
2
Pitch:
0.100" (2.54mm)
Read Out:
Dual
Features:
-
Mounting Type:
Through Hole
Termination:
Press-Fit
Contact Material:
Phosphor Bronze
Contact Finish:
Gold
Contact Finish Thickness:
30.0µin (0.76µm)
Contact Type:
-
Color:
Black
Flange Feature:
-
Operating Temperature:
-55°C ~ 85°C
0
Remaining
View Similar
In Stock
UnitPrice:
$3.15
Quantity:
43
Please send RFQ , we will respond immediately.
