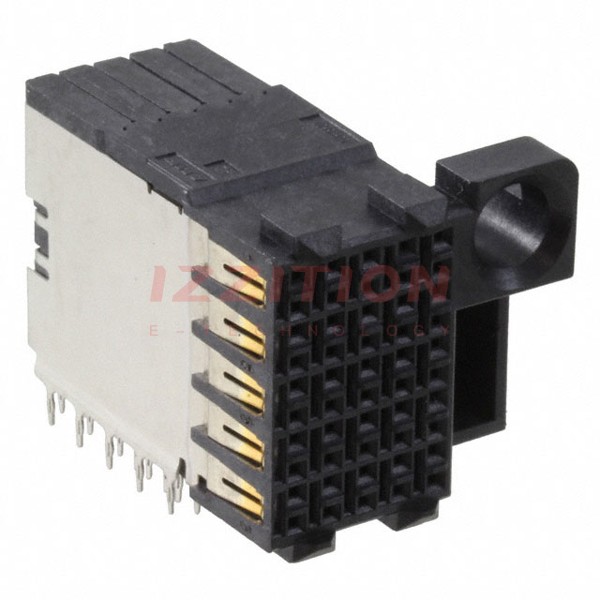

| Part Number | 5120794-1 | 5120795-1 | 5120790-1 | 5120791-1 | 5120792-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Connector Usage | - | Backplane | Backplane | Backplane | Backplane |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Connector Style | Dual Beam, Right Side | Dual Beam, Left Side | Dual Beam, Center | Dual Beam, Center | Dual Beam, Right Side |
| Number of Positions | 50 | 50 | 100 | 50 | 50 |
| Number of Positions Loaded | All | All | All | All | All |
| Pitch | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Number of Rows | 10 | 10 | 10 | 10 | 10 |
| Number of Columns | - | 5 | 10 | 5 | 5 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | - | - | - | - | - |
| Features | - | - | - | - | - |
| Contact Finish | - | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | - | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | - | - | - | - | - |
