Please send RFQ , we will respond immediately.

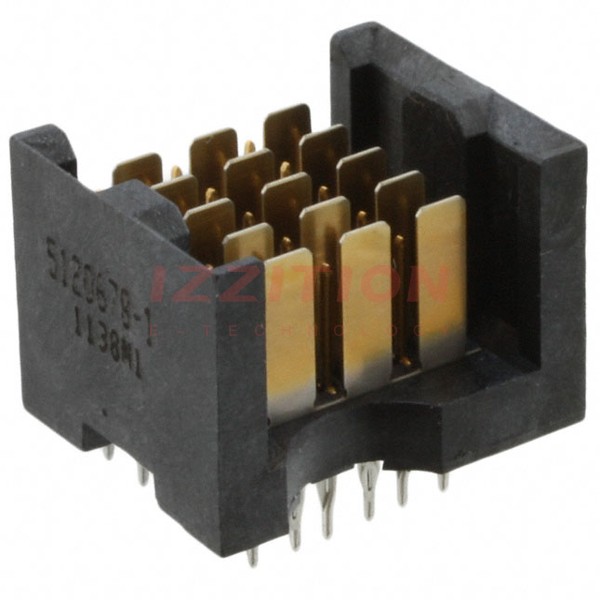

| Part Number | 5120678-1 | 5120678-2 | 5120658-1 | 5120672-1 | 5120674-1 | 5120677-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Last Time Buy | Active | Active | Active | Active |
| Connector Usage | Backplane | Backplane | Backplane | Backplane | Backplane | Backplane |
| Connector Type | Header, Male Pins and Blades | Header, Male Pins and Blades | Header, Male Pins and Blades | Header, Male Pins and Blades | Header, Male Pins and Blades | Header, Male Pins and Blades |
| Connector Style | Dual Beam, Left Side | Dual Beam, Left Side | Dual Beam, Center | Dual Beam, Left Side | Dual Beam, Center | Dual Beam, Right Side |
| Number of Positions | 30 | 30 | 100 | 50 | 60 | 30 |
| Number of Positions Loaded | All | All | All | All | All | All |
| Pitch | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Number of Rows | 6 | 6 | 10 | 10 | 6 | 6 |
| Number of Columns | 5 | 5 | 10 | 5 | 10 | 5 |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | - | - | - | - | - | - |
