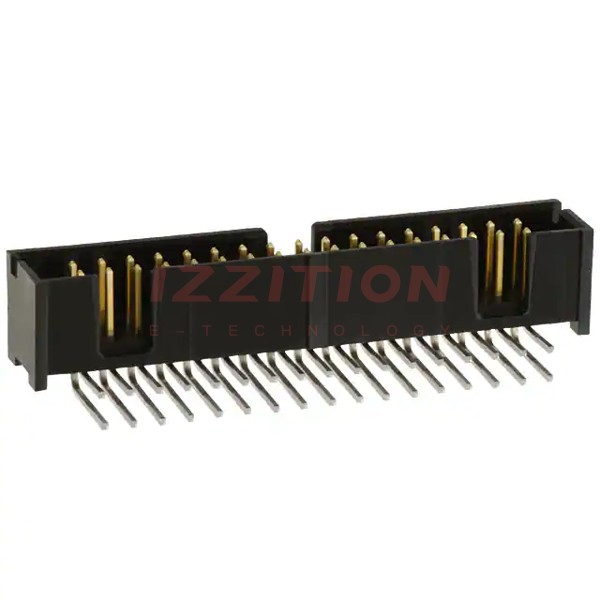

TE Connectivity AMP Connectors 5103310-7

Manufacturer No:
5103310-7
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
5103310-7 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 34POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:34
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.240" (6.10mm)
Contact Length - Post:0.135" (3.43mm)
Overall Contact Length:-
Insulation Height:0.360" (9.14mm)
Contact Shape:Square
Contact Finish - Mating:Gold or Gold-Palladium
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:-
Features:Keying Slot
Operating Temperature:-65°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):1A per Contact
Voltage Rating:-
0 Remaining View Similar

In Stock

$4.82
90

Please send RFQ , we will respond immediately.

Similar Products

Part Number 5103310-7 5103310-8   5103311-7   5103310-1   5103310-2   5103310-3   5103310-5   5103310-6
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active Active Active Active Active
Connector Type Header Header Header Header Header Header Header Header
Contact Type Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin
Pitch - Mating 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm)
Number of Positions 34 40 34 10 14 16 20 26
Number of Rows 2 2 2 2 2 2 2 2
Row Spacing - Mating 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm)
Number of Positions Loaded All All All All All All All All
Style Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle
Termination Solder Solder Solder Solder Solder Solder Solder Solder
Fastening Type Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull
Contact Length - Mating 0.240" (6.10mm) 0.240" (6.10mm) 0.240" (6.10mm) 0.240" (6.10mm) 0.240" (6.10mm) 0.240" (6.10mm) 0.240" (6.10mm) 0.240" (6.10mm)
Contact Length - Post 0.135" (3.43mm) 0.135" (3.43mm) 0.135" (3.43mm) 0.135" (3.43mm) 0.135" (3.43mm) 0.135" (3.43mm) 0.135" (3.43mm) 0.135" (3.43mm)
Overall Contact Length - - - - - - - -
Insulation Height 0.360" (9.14mm) 0.360" (9.14mm) 0.360" (9.14mm) 0.360" (9.14mm) 0.360" (9.14mm) 0.360" (9.14mm) 0.360" (9.14mm) 0.360" (9.14mm)
Contact Shape Square Square Square Square Square Square Square Square
Contact Finish - Mating Gold or Gold-Palladium Gold or Gold-Palladium Gold or Gold-Palladium Gold or Gold-Palladium Gold or Gold-Palladium Gold or Gold-Palladium Gold or Gold-Palladium Gold or Gold-Palladium
Contact Finish Thickness - Mating 15.0µin (0.38µm) 15.0µin (0.38µm) 30.0µin (0.76µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm)
Contact Finish - Post Tin Tin Tin Tin Tin Tin Tin Tin
Contact Material Brass Brass Brass Brass Brass Brass Brass Brass
Insulation Material - - - - - - - -
Features Keying Slot Keying Slot Keying Slot Keying Slot Keying Slot Keying Slot Keying Slot Keying Slot
Operating Temperature -65°C ~ 105°C -65°C ~ 105°C -65°C ~ 105°C -65°C ~ 105°C -65°C ~ 105°C -65°C ~ 105°C -65°C ~ 105°C -65°C ~ 105°C
Ingress Protection - - - - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Black Black Black Black Black Black Black Black
Current Rating (Amps) 1A per Contact 1A per Contact 1A per Contact 1A per Contact 1A per Contact 1A per Contact 1A per Contact 1A per Contact
Voltage Rating - - - - - - - -
